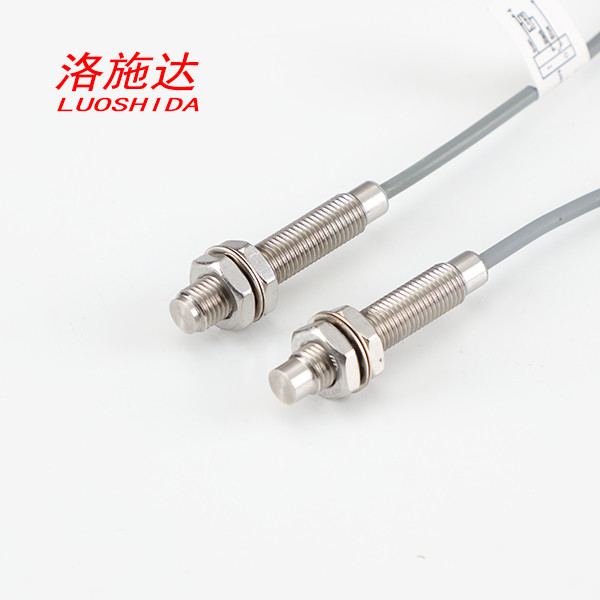

DC 3 Wire M8 Waterproof Stainless Steel Metal Face Cylindrical Inductive Proximity Sensor Switch
Model M2S0802PO
Overview
DC 3 Wire M8 Waterproof Stainless Steel Metal Face Cylindrical Inductive Proximity Sensor Switch, listed by Luoshida Sensor (dongguan) Co., Ltd in Dongguan, Guangdong. Published figures include certification CE ROHS, item M8 Full Metal Sensor and size M8*45mm.
Technical specifications
| Certification | CE ROHS |
|---|---|
| Item | M8 Full Metal Sensor |
| Size | M8*45mm |
| Material | Stainless Steel |
| Mounting | Flush Or Non-flush |
| Detection Sensor | 1mm Or 2mm |
| Output | NPN PNP NO NC |
| Housing Material | Stainless steel |
| With or Without LED | with LED |
| Operating Voltage | 10-30VDC |
| No Load Current | <10mA |
| Max.Load Current | 150mA |
| Leakage Current | <0.01mA |
| Voltage Drop | <1.5V |
| Switching Hysteresis | <15%(Sr) |
| Repeat Accuracy | <3.0%/5.0%(Sr) |
| Protection Category | IP67 |
| Operating Temperature | -25°C - +70°C |
| Temperature Drift | <10%(Sr) |
| Short Circuit Protection | YES |
| Overload Trip Point | 180mA |
| Shock/Vibration | IEC 60947-5-2,Part 7.4.1 / IEC 60947-5-2,Part 7.4.2 |
| Material Active Face | Stainless steel |
| Connection | D3 3*0.15 PUR 2M |
| Series | M8 Metal Face Inductive proximity sensor |
| Sensing Distance Sn(mm) | 1mm/2mm/3mm |
| Output function | NPN/PNP NO/NC |
