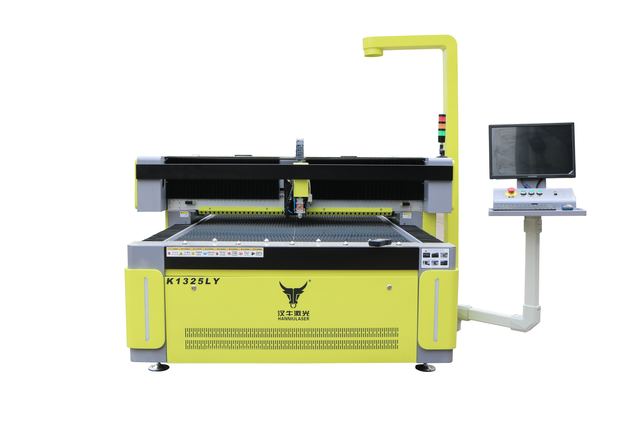

Cutting Machine CO2 And Fiber Laser Engraving Machine Cut Acrylic Stainless Steel
Model K1325LY
Overview
Cutting Machine CO2 And Fiber Laser Engraving Machine Cut Acrylic Stainless Steel supplied by Guangzhou Hanniu laser equipment Co., Ltd. Key published specifications: Model K-1325LY / K-1530LY; Laser Type CO₂ + Fiber (dual-source); Laser Wavelength 1064 nm; Laser Power (Optional) CO₂: 150–500W Fiber: 1500–3000W. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Model | K-1325LY / K-1530LY |
|---|---|
| Laser Type | CO₂ + Fiber (dual-source) |
| Laser Wavelength | 1064 nm |
| Laser Power (Optional) | CO₂: 150–500W Fiber: 1500–3000W |
| Cutting Accuracy | ±0.02 mm |
| Positioning Accuracy | ±0.01 mm |
| Cutting Speed | 0 – 1500 mm/min |
| Transmission Mode | 3-axis full rack and pinion drive |
| Drive Motor | Servo motor |
| Power Supply | Configurable per local standards |
| Working Temperature | 0-45°C |
| Cooling | Water Colling |
