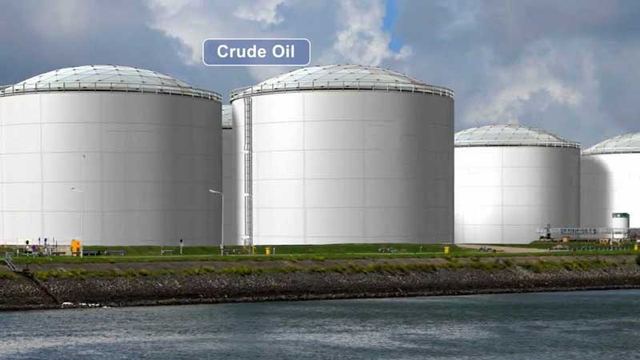

Crude Oil Storage Tanks
Overview
Crude Oil Storage Tanks supplied by Spring Sports Meeting Tianjin Anson International Co.,Ltd. Listed under Storage Tanks. Key published specifications: Volume 100,000 m³; Internal Diameter 80,000mm; Tank Wall Height 21,800mm; Medium Crude oil. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Volume | 100,000 m³ |
|---|---|
| Internal Diameter | 80,000mm |
| Tank Wall Height | 21,800mm |
| Medium | Crude oil |
| Max. Liquid Level | 19,500mm |
| Liquid Density | 890kg/ m³ |
| Max. Rainfall In 24 Hours | 176.3mm |
| Max. Rainfall In 1 Hour | 81mm |
| Fundamental Wind Pressure | 599Pa |
| Reference Snow Pressure | 350Pa |
| Operating Pressure | atmospheric |
| Design Pressure | atmospheric |
| Seismic Intensity | Degree 7 |
| Grouping Of Design Earthquake | The First Group |
| Tank Wall Corrosion Allowance | 1mm |
| Tank Bottom Corrosion Allowance | 2mm |
| Chinese Standards | GB50341 |
| US Standards | API650 |
| EU standards | BS2654 |
| Japanese Standards | JIS B8501 |
