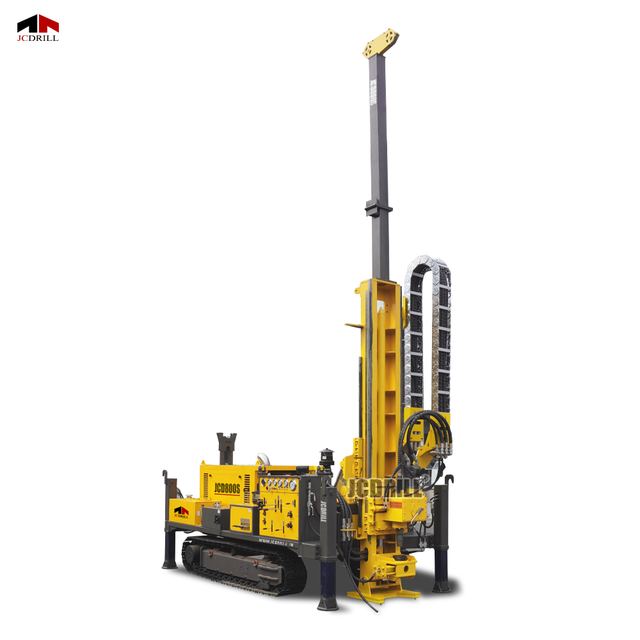

Crawler Mounted Remote Control Mineral Exploration Geological Investigation Borehole Core Drilling Rig
Model JCD800S
Overview
Crawler Mounted Remote Control Mineral Exploration Geological Investigation Borehole Core Drilling Rig supplied by Beijing Jincheng Mining Technology Co., Ltd. Listed under Drilling Rigs. Key published specifications: Drilling Capacity HTW-NTW-BTW; Engine Brand YUCHAI; Rated Speed 2400RPM; Torque 450-2200N.M.. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Drilling Capacity | HTW-NTW-BTW |
|---|---|
| Engine Brand | YUCHAI |
| Rated Speed | 2400RPM |
| Torque | 450-2200N.M. |
| Speed | 1300RPM |
| Feeding Stroke | 2400mm |
| Lifting Capacity | 800kg |
| Operation Type | Manual & Remote Control |
| Walking Speed | 3.5km/h |
| Mud Pump Model | BW-150 |
| Flow | 0-150L/MIN |
| Transport Size | 4900* 2100* 2360mm |
| Weight | 7 Ton |
| Applications | 1. Deep Mineral Exploration |
