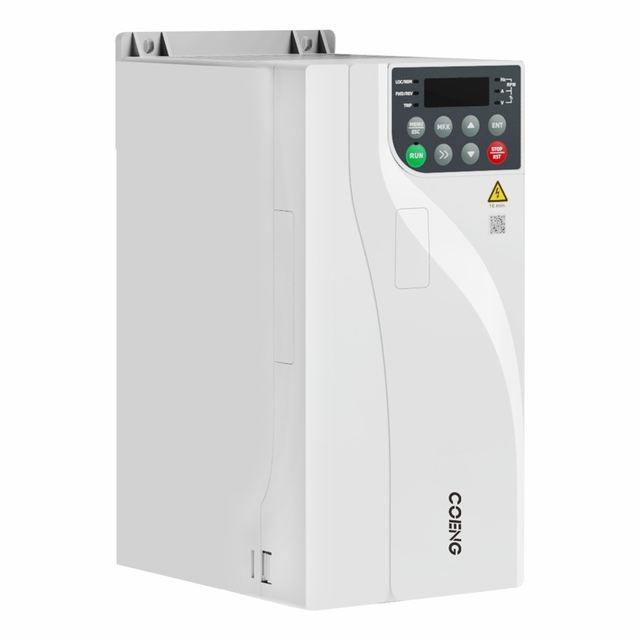

Crane Variable Frequency Drive With Anti Shake Function For Accurate Load Control
Model HV 610-3
Overview
Crane Variable Frequency Drive With Anti Shake Function For Accurate Load Control, listed under Frequency Controls by SENDEN TECH LIMITED in Hong Kong. Certification CE, IEC, input power frequency (50Hz/60Hz)±5% and input voltage 380V (-15%) To 480V (+10%) Three-phase are among the specifications published.
Technical specifications
| Certification | CE, IEC |
|---|---|
| Acceleration And Deceleration Curve | Straight Line, S-curve |
| Input Power Frequency | (50Hz/60Hz)±5% |
| Input Voltage | 380V (-15%) To 480V (+10%) Three-phase |
| Output Voltage | 0V-input Voltage |
| V/F Curve | Straight-line Type, Multi-point Type |
| Input frequency resolution | Digital Setting: 0.01Hz; Analog Setting: 0.01Hz |
| Speed range | 1:10 V/F; 1:100 OLVC; 1:1000 CLVC |
| Protection rating | IP20 |
| Torque response | ≤ 5ms, In Vector Control Mode |
| Our technical support includes | Assistance with product selection |
