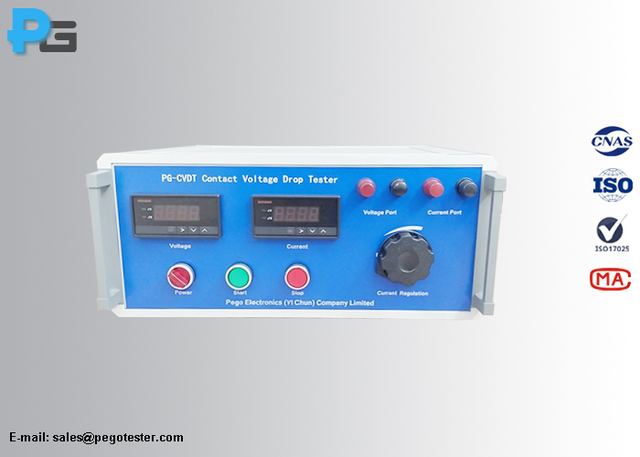

Contact Voltage Drop Tester
Model PG-CVDT
Overview
Contact Voltage Drop Tester supplied by Pego Electronics (Yi Chun) Company Limited. Key published specifications: Certification CNAS calibration Certificate; Test Current 0-50.0A; Drop Voltage Measurement Range 0-199.9mV; Normative Standard IEC60884-1, BS1363. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | CNAS calibration Certificate |
|---|---|
| Test Current | 0-50.0A |
| Drop Voltage Measurement Range | 0-199.9mV |
| Normative Standard | IEC60884-1, BS1363 |
| Working Power (input) | 220V, 50/60Hz |
| Voltmeter accuracy | ±1.0%F.S±3digits |
| Ammeter accuracy | ±1.0%F.S±2digits |
| Humidity | 20-95%RH |
| Standard | IEC60065 figure 11, IRAM 4229 |
| Application | dricet plug-in equipment |
| Material | steel |
| Working power | 220V/50Hz |
| Display | PLC |
| Load Current | 0-30A |
| Load voltage | 5-300V |
| Testing current | 0-40A |
