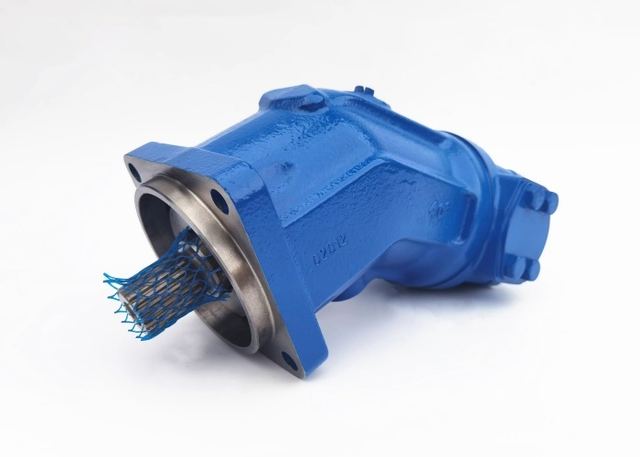

Concrete Mixer Drums HA2FM Axial Piston Hydraulic Motor
Model HA2FM Series Axial Piston Motor
Overview
Concrete Mixer Drums HA2FM Axial Piston Hydraulic Motor, listed by Shandong Keystone Hydraulic Co.,Ltd. Size 5 To 1000, nominal pressure 400 Bar and max. pressure 450 Bar are among the specifications published.
Technical specifications
| Size | 5 To 1000 |
|---|---|
| Nominal Pressure | 400 Bar |
| Max. Pressure | 450 Bar |
| Power Source | Hydraulic |
| Type | Piston Pump |
| Displacement Range | 5 to 1000 cm³/rev (multiple options) |
| Maximum Pressure | 450 bar |
| Max. Speed | Up to 11,000 rpm (depending on size) |
| Torque @ 400 bar | Up to 1273 Nm |
| Weight | 2.5 kg – 73 kg (depending on model) |
| Circuit Compatibility | Open and Closed Hydraulic Circuits |
| Certification | SIO9001 |
