Overview

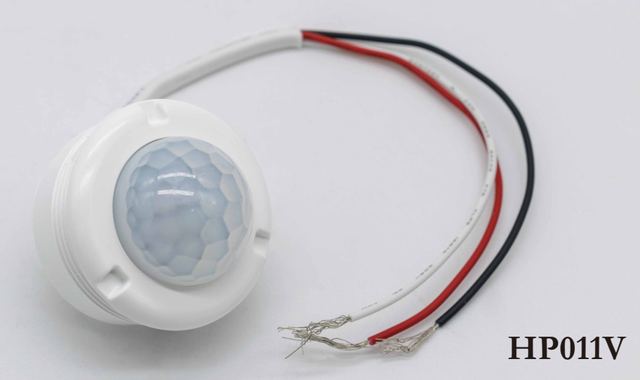

Compact Round PIR Sensor 12VDC Input Power With Remote Control supplied by Shenzhen HAISEN Technology Co.,Ltd. Listed under Proximity Sensors. Key published specifications: Detection Method PIR SENSOR; Operating Voltage 10.5-15V DC; Operating Current ≤30mA; PIR Wave Length 5-14um. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Detection Method	PIR SENSOR
Operating Voltage	10.5-15V DC
Operating Current	≤30mA
PIR Wave Length	5-14um
Control Method	ON/OFF & DIM
Warm-up Period	45s
Mounting height	≤4m/13.12ft
Detection range	Radius.2.5-4m/8.20-13.12ft
Programming	Default Programmed
IP Rating	IP20
Operating Temperature	-20°C~+60°C
Power	12VDC
