Overview

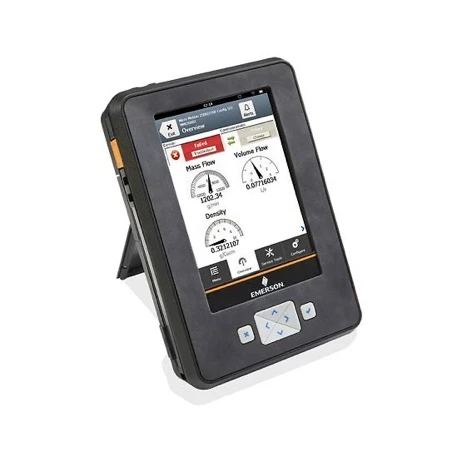

Communicator supplied by Shaanxi Dongsheng Energy Technology Co., Ltd. Listed under Flow Meters. Key published specifications: Microprocessor 800 MHz ARM Cortex A8/NXP; Memory Internal Flash 2 GB NAND and 32GB extended flash; Operating System Windows Embedded Compact 2013; Weight Approximately 2.9 lbs(1330 grams). Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Microprocessor	800 MHz ARM Cortex A8/NXP
Memory Internal Flash	2 GB NAND and 32GB extended flash
Operating System	Windows Embedded Compact 2013
Weight	Approximately 2.9 lbs(1330 grams)
Display	5.7 inch(14.5cm)color VGA resistive touchscreen
Keypad	Xbutton-similar to a Back key
Battery	Rechargeable Lithium-lon Power Module
Operating Time	8+hours of typical use
Charge Time	3 to 4 hours
Battery Charger Options	Input voltage 100-240 VAC,50-60 Hz
Battery Charger	Barrel Round Plug Tip
Wireless Approvals	FCC,CE,RED and ICApprovals
Wi-Fi	802.11b/g/n
Model TREX-0002-1211	Rechargeable Li-Ion Power Module
Model TREX-0003-0022	DC Adapter (12v Vehicle Accessory Outlet)
