Overview

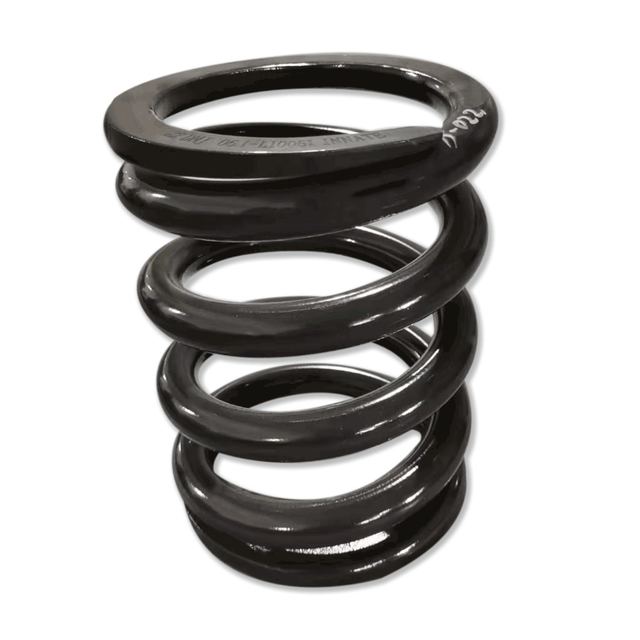

Coil Spring of Railway Primary suspension supplied by Chongqing Hengtairail Equipment Co.,Ltd. Listed under Other Railway Products. Key published specifications: Standard EN13298/UIC 822; Material EN10089; Direction Right Or Left; Max Wire Diameter To 80mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Standard	EN13298/UIC 822
Material	EN10089
Direction	Right Or Left
Max Wire Diameter	To 80mm
Max Height	To 1200 Mm
Material Standard	EN10089
Manufacturing standard	EN13298/UIC822
Wire range	from 1.5mm to 80 mm
Height range	maximum 1200mm
Surface treatment	Painting
Surface hardness	45~51HRC
KU	≥10J
