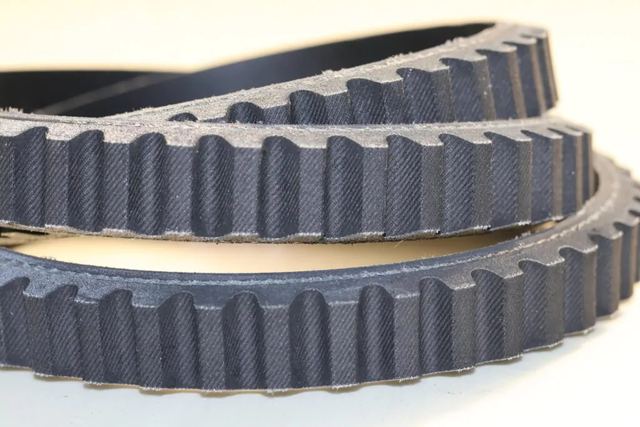

Cogged V Belt
Overview
Cogged V Belt supplied by Longyi Rubber Products Factory. Listed under Poly V Belts. Key published specifications: Length Range 400mm to 5000mm+; Construction Raw edge with molded cogs; Materials CR (Neoprene), EPDM, HNBR (high-performance); Cord Reinforcement Polyester (standard), Aramid (heavy-duty). Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Length Range | 400mm to 5000mm+ |
|---|---|
| Construction | Raw edge with molded cogs |
| Materials | CR (Neoprene), EPDM, HNBR (high-performance) |
| Cord Reinforcement | Polyester (standard), Aramid (heavy-duty) |
| Temperature Range | -30°C to +80°C (standard), -40°C to +120°C (heat-resistant) |
| Standards | ISO 4184, DIN 7753, RMA IP-22 |
| Certifications | IATF 16949 , ISO 9001 |
