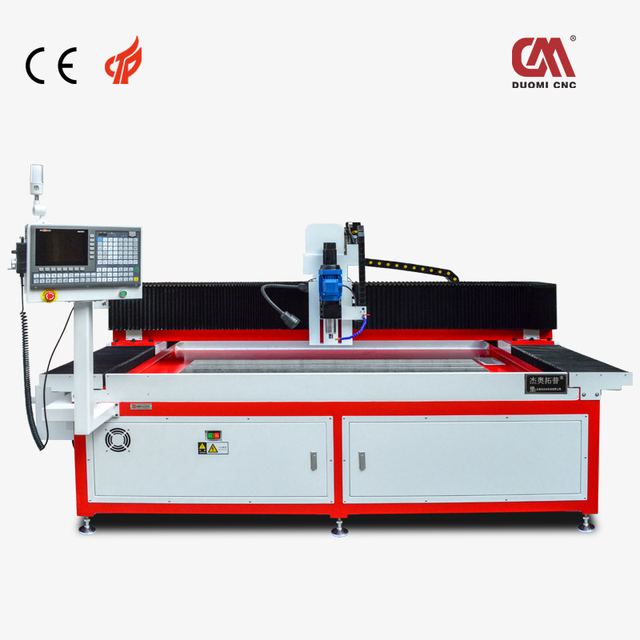

CNC Tapping Machine
Model DNC-1530DT
Overview
CNC Tapping Machine supplied by Duomi (Guangdong) Intelligent Equipment Co., Ltd. Listed under Drilling Equipment. Key published specifications: Machine type DNC-1530DT; XYZ three-axis machining stroke0 X1500mm Y300mm Z200mm; Spindle taper hole ER20; Spindle power 0.55~3.0KW. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Machine type | DNC-1530DT |
|---|---|
| XYZ three-axis machining stroke0 | X1500mm Y300mm Z200mm |
| Spindle taper hole | ER20 |
| Spindle power | 0.55~3.0KW |
| X axis moving speed | 30m/min~60m/min |
| Y axis moving speed | 25m/min |
| Z axis moving speed | 25m/min |
| Borehole diameter range | 1~20mm |
| Chamfer diameter range | 1~20mm |
| Tool magazine | Manual tool change |
| Repeated positioning accuracy | ±0.01mm |
| Table size | 1500*280mm |
| Programming mode | CAD file import/computer programming/manual programming |
| System program storage capacity | About 10,000 |
| System external signal control | Support |
| Operating voltage | AC 220V/50HZ |
| Machine weight | Approx. 1300KG |
| Floor space | 3000*1500*1700mm |
| Hole Size Range | M2 – M14. |
| Positioning Accuracy | ±0.01mm. |
| Thread Range | M2 – M16 |
| Spindle Speed | 500–4000 RPM |
| Control Interface | Touchscreen CNC / PLC |
