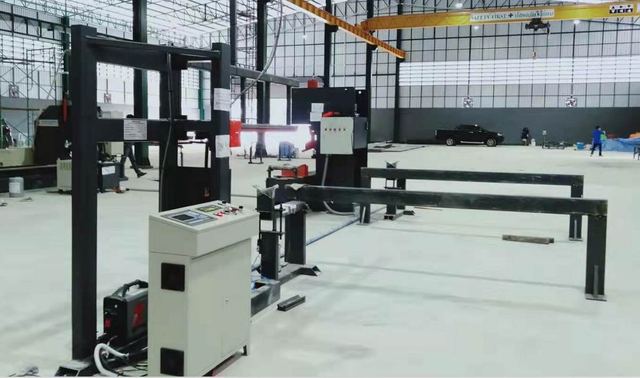

CNC Laser Light Pole Door Cutting Machine, Model LDC-350/2000

Model LDC-350/2000

CNC Laser Light Pole Door Cutting Machine, Model LDC-350/2000

Overview

CNC Laser Light Pole Door Cutting Machine, Model LDC-350/2000, listed by Wuxi CMC Machinery Co.,Ltd in Yixing, Jiangsu. Published figures include 指示光 guide beam 红色/Red, 工作模式 operation mode 连续或调制/Continuous or Modulated and 偏振方向 polarization 随机/Random.

Technical specifications

指示光 Guide Beam红色/Red
工作模式 Operation Mode连续或调制/Continuous or Modulated
偏振方向 Polarization随机/Random
最大调制频率 Max. Modulation Frequency5kHz
重量 Weight＜35Kg
电压 Voltage220±20V,AC,PE,50/60Hz
功耗 Power Consumption6.0 kW
控制方式 Control InterfaceRS232
制冷量需求 Mini. Water Cooling Capacity4.5 kW
设置温度 Temperature Settings25℃ (激光模块,Laser Module),30℃(QBH)
水管尺寸(外径) Cooling Tubes Size (External)Φ12mm
冷却水流量 Cooling Water Flux>20L/min
Suggestion of cutting gasO2
Control cycle1ms
Temperature range-20 ℃ to +60 ℃;
