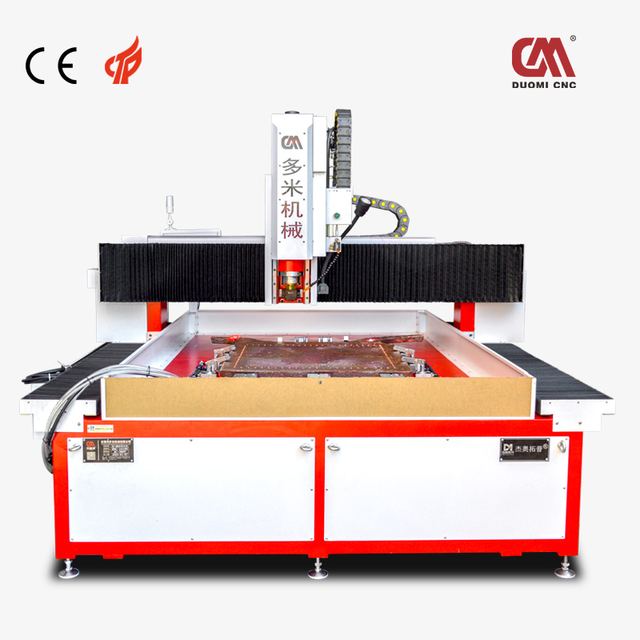

CNC drilling milling machine
Model DNC-1510N
Overview
CNC drilling milling machine supplied by Duomi (Guangdong) Intelligent Equipment Co., Ltd. Listed under Drilling Equipment. Key published specifications: Machine type DNC-1510N; XYZ three-axis machining stroke0 X1500mm Y1000mm Z200mm; Spindle taper hole ER20; Spindle power 5.5KW. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Machine type | DNC-1510N |
|---|---|
| XYZ three-axis machining stroke0 | X1500mm Y1000mm Z200mm |
| Spindle taper hole | ER20 |
| Spindle power | 5.5KW |
| X axis moving speed | 30m/min~60m/min |
| Y axis moving speed | 25m/min |
| Z axis moving speed | 25m/min |
| Borehole diameter range | 3~20mm |
| Tapping diameter range | M4~M18 |
| Chamfer range | 3~20mm |
| Tool magazine | Manual tool change |
| Repeated positioning accuracy | ±0.01mm |
| Programming mode | CAD file import/computer programming/manual programming |
| System program storage capacity | About 10,000 |
| System external signal control | support |
| Operating voltage | AC 380V/50HZ |
| Machine weight | Approx. 2300KG |
| Floor space | 2500*2500*2000mm |
| Hole Size Range | M4 – M18. |
| Positioning Accuracy | ±0.02mm. |
| Material Thickness | 3~20mm. |
