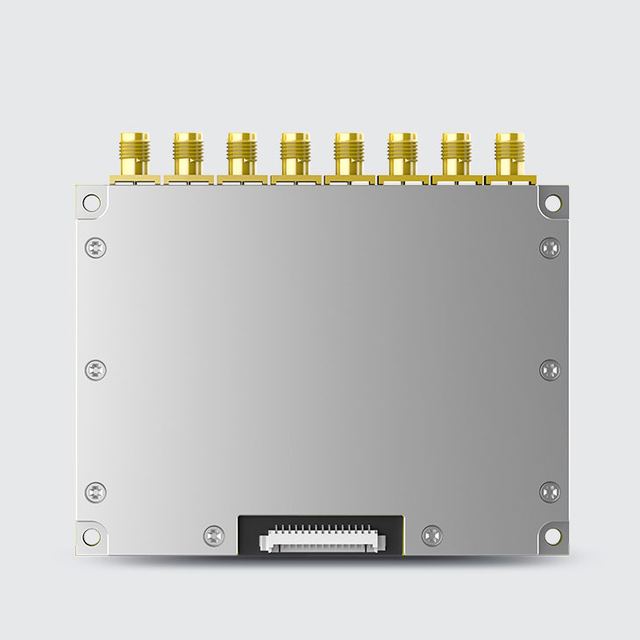

CM2000-8 UHF RFID Module
Overview
CM2000-8 UHF RFID Module supplied by Shenzhen Chainway Information Technology Co., Ltd. Key published specifications: Dimensions 93.0mm x 79.75mm x 8.9mm; Weight 108.0g / 3.81oz; RF Chip Indy R2000; Air Interface Protocol EPC global Gen2 ( ISO18000-6C ). Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Dimensions | 93.0mm x 79.75mm x 8.9mm |
|---|---|
| Weight | 108.0g / 3.81oz |
| RF Chip | Indy R2000 |
| Air Interface Protocol | EPC global Gen2 ( ISO18000-6C ) |
| Output Power | 5-30dBm adjustable 1dB step interval +/- 1dB precision |
| Output Power Flatness | +/- 0.2dB |
| Antenna Interface | 8-channel 50Ω RF connector SMA Receptacle |
| Receive Sensitivity | < -84 dBm |
| Tag RSSI | Supported |
| Antenna Detector | Supported |
| Ambient Temp Monitor | Supported |
| Working Mode | Single/DRM |
| Host Communication | UART 3.3V TTL Level Baud Rate: 115200bps |
