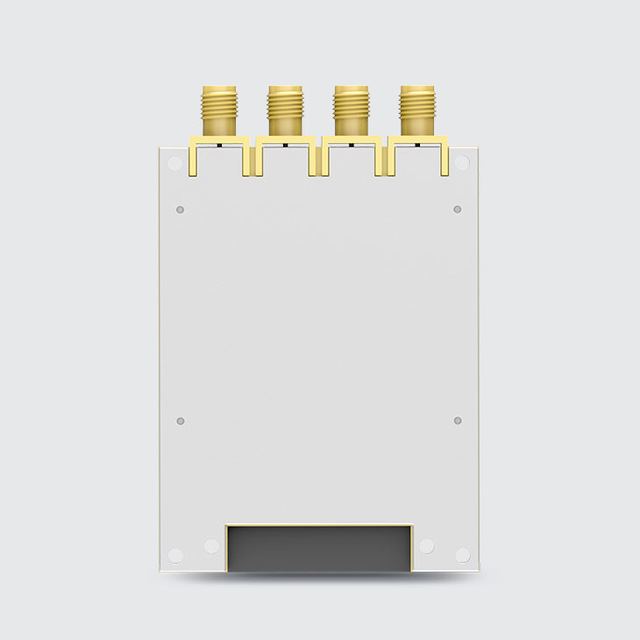

CM2000-4 UHF RFID Module
Overview
CM2000-4 UHF RFID Module supplied by Shenzhen Chainway Information Technology Co., Ltd. Key published specifications: Exceptional Tag Reading Performance Superior Stability; Excellent Heat Dissipation Low Power Design; High-Speed Polling with Four Antenna Support Consistent Performance; Dimensions 77.2mm x 51.0mm x 8.9mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Exceptional Tag Reading Performance | Superior Stability |
|---|---|
| Excellent Heat Dissipation | Low Power Design |
| High-Speed Polling with Four Antenna Support | Consistent Performance |
| Dimensions | 77.2mm x 51.0mm x 8.9mm |
| Weight | 52.0g/1.83oz |
| RF Chip | Indy R2000 |
| Air Interface Protocol | EPCglobal Gen2 ( ISO18000-6C ) |
| Output Power | 5-30dBm adjustable 1dB step interval +/- 1dB precision |
| Output Power Flatness | +/- 0.2dB |
| Antenna Interface | 4-channel 50Ω RF connector SMA Receptacle |
| Receive Sensitivity | < -84 dBm |
| Tag RSSI | Supported |
| Antenna Detector | Supported |
| Ambient Temp Monitor | Supported |
| Working Mode | Single/DRM |
| Host Communication | UART 3.3V TTL Level Baud Rate: 115200bps |
