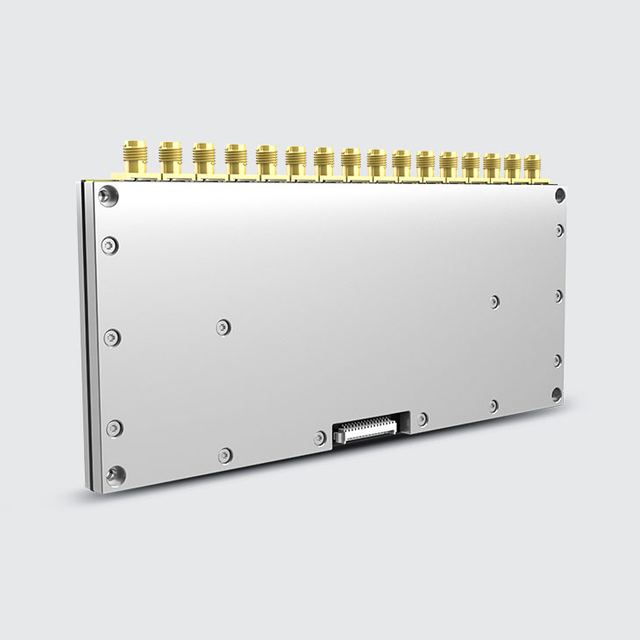

CM2000-16 UHF RFID Module
Overview
CM2000-16 UHF RFID Module supplied by Shenzhen Chainway Information Technology Co., Ltd. Key published specifications: Weight 253.0g / 8.92oz; RF Chip Indy R2000; Air Interface Protocol EPC global Gen2 ( ISO18000-6C ); Output Power 5-30dBm adjustable; 1dB step interval; +/- 1dB precision. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Weight | 253.0g / 8.92oz |
|---|---|
| RF Chip | Indy R2000 |
| Air Interface Protocol | EPC global Gen2 ( ISO18000-6C ) |
| Output Power | 5-30dBm adjustable; 1dB step interval; +/- 1dB precision |
| Output Power Flatness | +/- 0.2dB |
| Antenna Interface | 16-channel 50Ω RF connector SMA Receptacle |
| Receive Sensitivity | < -84 dBm |
| Tag RSSI | Supported |
| Antenna Detector | Supported |
| Ambient Temp Monitor | Supported |
| Working Mode | Single/DRM |
| Host Communication | UART 3.3V TTL Level Baud Rate: 115200bps |
