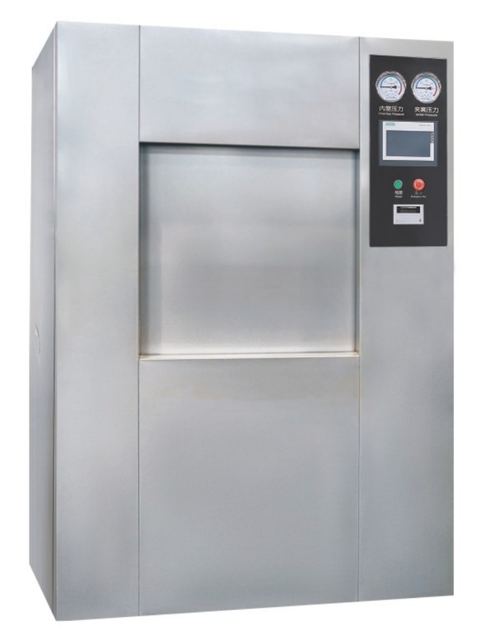

Class B Type 150l Large Horizontal Pulsalting Vacuum Steam Sterilizer
Model STH-RV150S
Overview
Class B Type 150l Large Horizontal Pulsalting Vacuum Steam Sterilizer supplied by Stertek（Nanjing）Medical Equipment Co.,ltd. Key published specifications: Certification CE, ISO13485,ISO9001; Capacity 150L; Sterilization Trays 2pcs; Data Storage Build-in Printer. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | CE, ISO13485,ISO9001 |
|---|---|
| Capacity | 150L |
| Sterilization Trays | 2pcs |
| Data Storage | Build-in Printer |
| Compressed Air Requirements | 0.4 ~ 0.7MPa |
| Working Press. | 0.25Mpa |
| Ultimate Vacuum | -96KPa |
| Door Structure | Sliding-Door |
| Number Of Doors | Double Door |
| Door | Automatic Lifting |
| Display | 7-inch Si e mens PLC Color Touch Screen |
| Designed Pressure | Inner Chamber:-0.1~0.3MPa; Jacket:0.3MPa |
| Working Pressure | 0.25MPa |
| Buil d -in Steam Generator | 0.25MPa |
| Sterilization Time | 0-99min |
| Drying time | 0-99min |
| Vacuum system | SPECK Water Ring Vacuum Pump |
| Chamber Material | S30408 |
| Satandard Accessories | Printer, Liquid program,Side Cover |
| Optional Accessories | Air compressor, 316chamber |
| Power Supply | AC380V, 50HZ/60HZ, Three Phase;Wiring Method:Air Switch |
| AC380V, 50HZ/60HZ, Three Phase;Wiring Method | Air Switch |
| Door Type | Lifting Sliding-Door |
