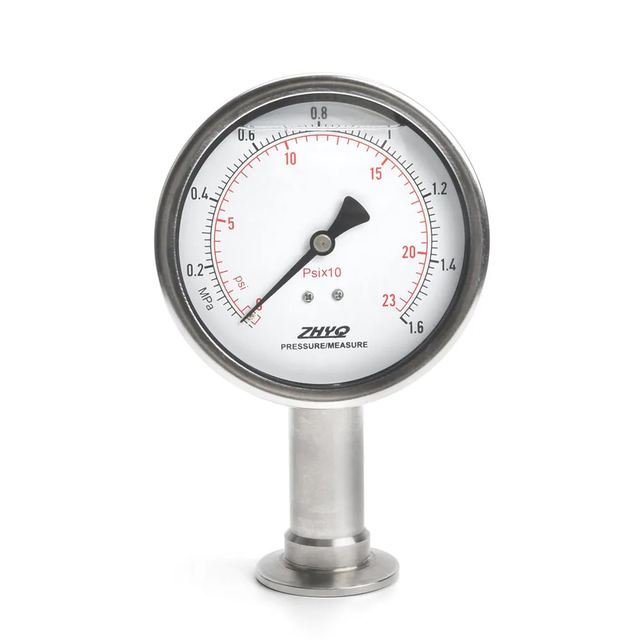

Clamp Mounted Diaphragm Pressure Gauge
Model PT124Y-623
Overview
Clamp Mounted Diaphragm Pressure Gauge supplied by Shanghai Zhaohui Pressure Apparstus Co.,Ltd. Key published specifications: Pressure range 0~2MPa; Pointer accuracy ±1.6%FS ; ±2.5%FS; Overload 150%FS; Dial Filling Material Silicone oil. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Pressure range | 0~2MPa |
|---|---|
| Pointer accuracy | ±1.6%FS ; ±2.5%FS |
| Overload | 150%FS |
| Dial Filling Material | Silicone oil |
| Dial Diameter | 100mm |
| Length of rod | 33 ; 82mm |
| Process Connection | 2″ Tri-clamp |
