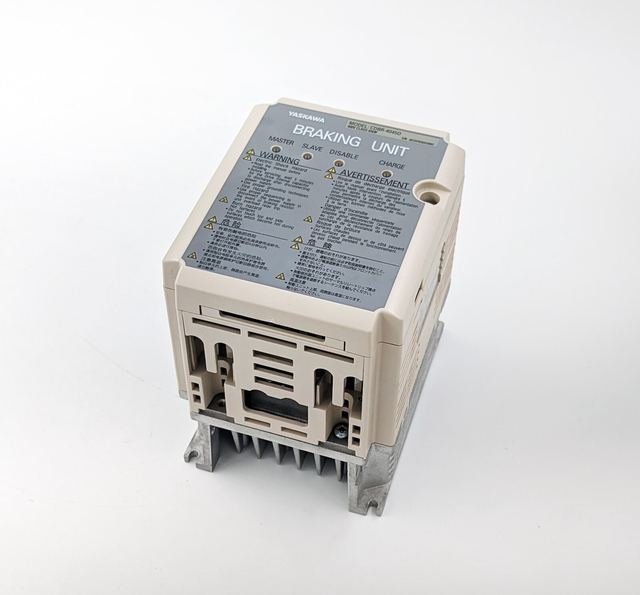

CDBR-4045D 18-amp, universal dynamic braking unit
Model CDBR-4045D
Overview
CDBR-4045D 18-amp, universal dynamic braking unit supplied by Changsha Zhinian Automation Equipment Co., Ltd. Listed under Plcs, Hmis & Industrial Controllers. Key published specifications: Continuous Current 18 A; DC Voltage Range 510 to 680 V DC; Motor Capacity 45 kW (approx. 45 HP); Enclosure & Rating IP20. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Continuous Current | 18 A |
|---|---|
| DC Voltage Range | 510 to 680 V DC |
| Motor Capacity | 45 kW (approx. 45 HP) |
| Enclosure & Rating | IP20 |
| Dimensions | 120mm (W) x 157mm (D) x 150mm (H) |
| Net Weight | 2 kg (approx. 4.4 lbs) |
