Overview

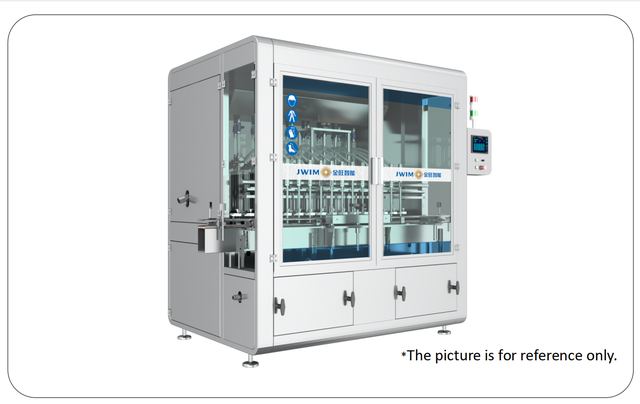

CCG1000-16TJ Intelligent Eco-Friendly Automatic High-Viscosity Filling Machine supplied by Jiangsu Jinwang Intelligent Sci-Tech Co., Ltd. Listed under Filling Machine. Key published specifications: Certification CE,CO,ISO; Capacity 100ml: ≤6000 BPH 1000ml:≤3000 BPH; Applicable Bottle Size Round Bottle: Φ40-95mm Height:80-230mm; Filling Volume 50-1000ml. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Certification	CE,CO,ISO
Capacity	100ml: ≤6000 BPH 1000ml:≤3000 BPH
Applicable Bottle Size	Round Bottle: Φ40-95mm Height:80-230mm
Filling Volume	50-1000ml
Filling Precision	±1g (50-200ml) ±1.5g (200-500ml) ±2g (500-1000ml)
Product Feeding Height	2300mm
Product Feeding Diameter	DN40
Filling Nozzle Diameter	Φ18mm
Min Opening Diameter	≥Φ22mm
Air Pressure	0.6-0.8MPa
Power Source	~380V 50Hz/2.2KW
External Dimension	2435×1125×2480mm(L×W×H)
Weight	About 1716kg
