Overview

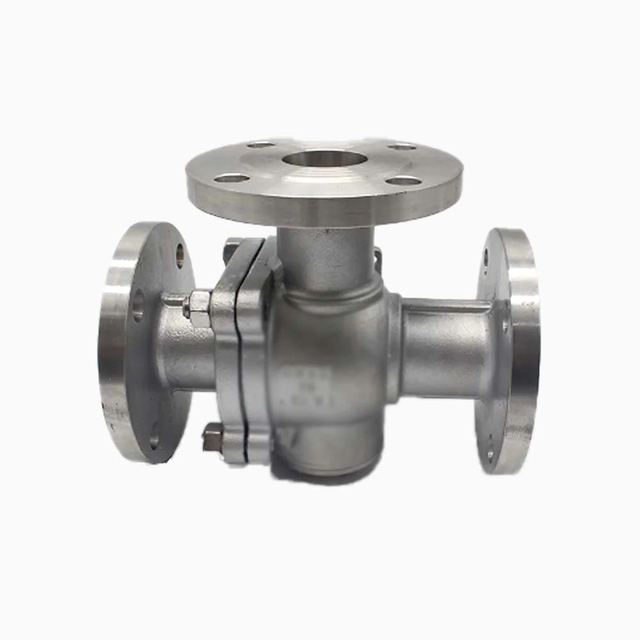

Categories Ball Valve, 3-Way Ball Valves supplied by TIANYU VALVE. Listed under Ball Valves. Key published specifications: Pressure Class 150LB–600LB, PN10–PN64; Design and Manufacturing Standards API 6D， API 608，ASME B16.34，ISO 17292，BS5351，; Face to Face Standards ASME B16.10, BS 558, BS12982, ISO 5752; Pressure Test Standards API598 API 6D BS12569. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Pressure Class	150LB–600LB, PN10–PN64
Design and Manufacturing Standards	API 6D， API 608，ASME B16.34，ISO 17292，BS5351，
Face to Face Standards	ASME B16.10, BS 558, BS12982, ISO 5752
Pressure Test Standards	API598 API 6D BS12569
Fire Safety Test Standards	API 6FA API 607
Quality/Product Certifications	ISO9001, ISO14001, ISO18001
Fugitive Emissions	ISO 15848-1, API 622
Shutoff Class	API 598 (Zero Leakage), API 6D
Nominal Diameter	1”(DN25)
Nominal Pressure	150LB
Material	CF8
Design Standard	API 6D
End Connection	RF FLANGE
Flange standard	ASME/ANSI B16.5
