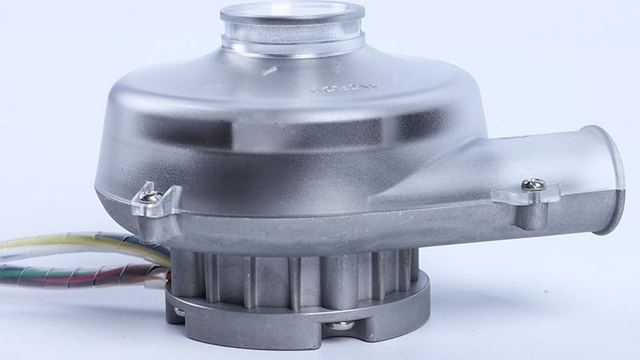

C9010 12V/24V/48V Brushless DC Blower
Model C9010-24V-1
Overview
C9010 12V/24V/48V Brushless DC Blower supplied by Gobalsir Inc. Key published specifications: Part Name Brushless DC Blower; Power Supply Type DC; Driver Layout External; max.Static Pressure 5.0kPa. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Part Name | Brushless DC Blower |
|---|---|
| Power Supply Type | DC |
| Driver Layout | External |
| max.Static Pressure | 5.0kPa |
| max.Flow Rate | 872LPM（52.3m³/h） |
| Rated Static Pressure | 4.0kPa |
| Rated Flow Rate | 383LPM（23.0m³/h） |
| Humidity Range(ambient) | ≤85%RH |
| Size | 103.2*95.4*69.3mm |
| Certification | RoHS, CE |
| Product Model | AB C9010-24V-1 |
| Product SPEC | AB C9010-24V-5.0kPa-872LPM |
| max.Speed | 23,900 rpm |
| Motor Driver | AC06B |
| max.flow Speed | 64.1m/s |
| Motor Driver Layout | External |
| Lifetime(L10 at 40℃) | 20,000h |
| Rated Speed | 21,000rpm |
| Rate Voltage | 24VDC |
| Rated Airflow | 383LPM（23.0m³/h） |
| Voltage Range | 14-28V |
| Peak Power | 75W |
| Rated Power | 50W |
| Humidity Range | ≤85%RH |
| ID of Inlet | 26.0mm |
| ID of Outlet | 17.0mm |
