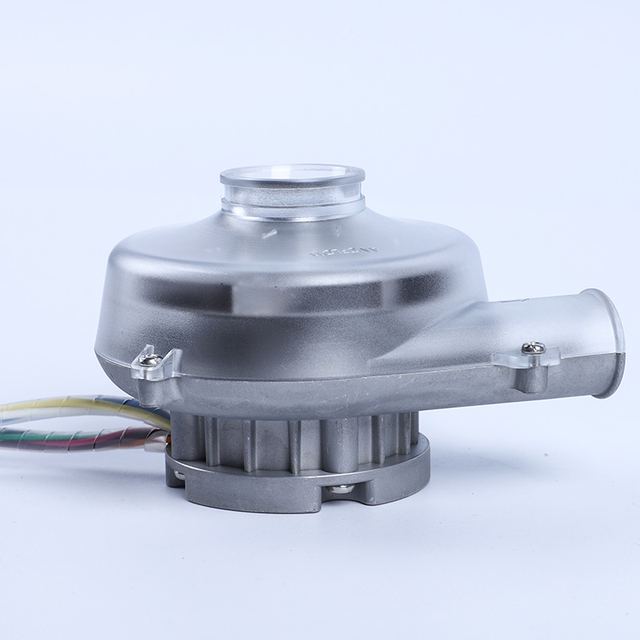

C9006 12V/24V/48V Brushless DC Blower
Model C9006-12/24/48V-1
Overview
C9006 12V/24V/48V Brushless DC Blower supplied by Gobalsir Inc. Key published specifications: Part Name Brushless DC Blower; Power Supply Type DC; Driver Layout External; max.Static Pressure 7.5kPa. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Part Name | Brushless DC Blower |
|---|---|
| Power Supply Type | DC |
| Driver Layout | External |
| max.Static Pressure | 7.5kPa |
| max.Flow Rate | 1,024LPM（61.4m³/h） |
| Rated Static Pressure | 5.9kPa |
| Rated Flow Rate | 407LPM（24.4m³/h） |
| Humidity Range(ambient) | ≤85%RH |
| Size | 103.2*95.4*69.3mm |
| Certification | RoHS, CE |
| Product Model | AB C9006-24V-1 |
| Product SPEC | AB C9006-24V-7.5kPa-1024LPM |
| max.Speed | 29,000 rpm |
| Motor Driver | AC06B |
| max.flow Speed | 75.2m/s |
| Motor Driver Layout | External |
| Lifetime(L10 at 40℃) | 20,000h |
| Rated Speed | 25,000pm |
| Rate Voltage | 24VDC |
| Rated Airflow | 407LPM（24.4m³/h） |
| Voltage Range | 14-28V |
| Peak Power | 118W |
| Rated Power | 85W |
| Humidity Range | ≤85%RH |
| ID of Inlet | 26.0mm |
| ID of Outlet | 17.0mm |
