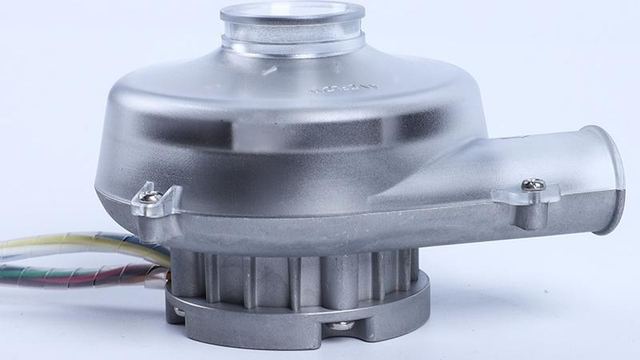

C9003 12V/24V/48V Brushless DC Blower
Model C9003-24V-1
Overview
C9003 12V/24V/48V Brushless DC Blower supplied by Gobalsir Inc. Key published specifications: Part Name Brushless DC Blower; Power Supply Type DC; Driver Layout External; max.Static Pressure 8.5kPa. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Part Name | Brushless DC Blower |
|---|---|
| Power Supply Type | DC |
| Driver Layout | External |
| max.Static Pressure | 8.5kPa |
| max.Flow Rate | 1,120LPM（67.2m³/h） |
| Rated Static Pressure | 6.0kPa |
| Rated Flow Rate | 453LPM（27.2m³/h） |
| Humidity Range(ambient) | ≤85%RH |
| Size | 103.2*95.4*69.3mm |
| Certification | RoHS, CE |
| Product Model | AB C9003-24V-1 |
| Product SPEC | AB C9003-24V-8.5kPa-1120LPM |
| max.Speed | 31,000 rpm |
| Motor Driver | AC01A, AC14C |
| max.flow Speed | 82.3m/s |
| Motor Driver Layout | External |
| Lifetime(L10 at 40℃) | 20,000h |
| Rated Speed | 26,500rpm |
| Rate Voltage | 24VDC |
| Rated Airflow | 453LPM（27.2m³/h） |
| Voltage Range | 14-28V |
| Peak Power | 132W |
| Rated Power | 99W |
| Humidity Range | ≤85%RH |
| ID of Inlet | 26.0mm |
| ID of Outlet | 17.0mm |
