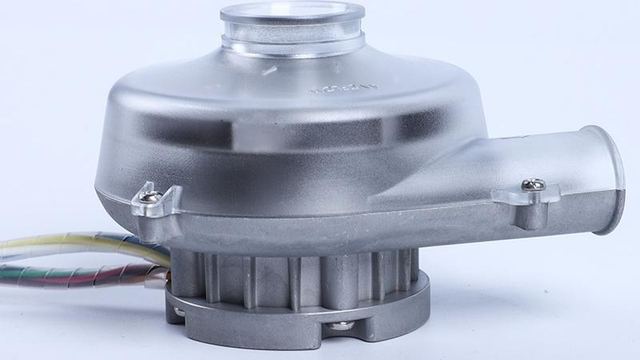

C9001 12V/24V/48V Brushless DC Blower
Model C9001-24V-1
Overview
C9001 12V/24V/48V Brushless DC Blower supplied by Gobalsir Inc. Key published specifications: Part Name Brushless DC Blower; Power Supply Type DC; Driver Layout External; max.Static Pressure 10.5kPa. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Part Name | Brushless DC Blower |
|---|---|
| Power Supply Type | DC |
| Driver Layout | External |
| max.Static Pressure | 10.5kPa |
| max.Flow Rate | 1,150LPM（69.0m³/h） |
| Rated Static Pressure | 7.5kPa |
| Rated Flow Rate | 447LPM（26.8m³/h） |
| Humidity Range(ambient) | ≤85%RH |
| Size | 103.2*95.4*69.3mm |
| Certification | RoHS, CE |
| Product Model | AB C9001-24V-1 |
| Product SPEC | AB C9001-24V-10.5kPa-1150LPM |
| max.Speed | 33,600 rpm |
| Motor Driver | AC01A |
| max.flow Speed | 84.5m/s |
| Motor Driver Layout | External |
| Lifetime(L10 at 40℃) | 20,000h |
| Rated Speed | 29,200rpm |
| Rate Voltage | 24VDC |
| Rated Airflow | 447LPM（26.8m³/h） |
| Voltage Range | 14-28V |
| Peak Power | 180W |
| Rated Power | 135W |
| Humidity Range | ≤85%RH |
| ID of Inlet | 26.0mm |
| ID of Outlet | 17.0mm |
