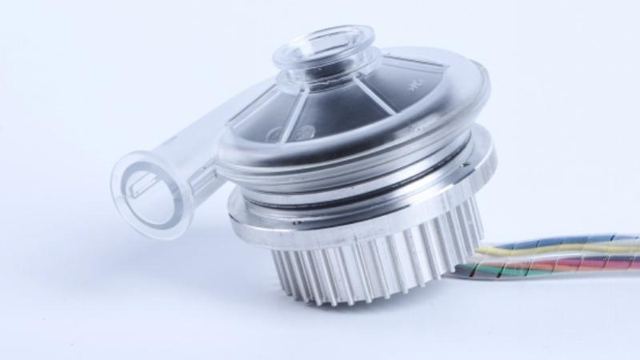

C8012 12V/24V/48V Brushless DC Blower
Model C8012-12/24/48V-1
Overview
C8012 12V/24V/48V Brushless DC Blower supplied by Gobalsir Inc. Key published specifications: Part Name Brushless DC Blower; Power Supply Type DC; Driver Layout External; max.Static Pressure 11.0kPa. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Part Name | Brushless DC Blower |
|---|---|
| Power Supply Type | DC |
| Driver Layout | External |
| max.Static Pressure | 11.0kPa |
| max.Flow Rate | 807LPM（48.4m³/h） |
| Rated Static Pressure | 9.1kPa |
| Rated Flow Rate | 310LPM（18.6m³/h） |
| Humidity Range(ambient) | ≤85%RH |
| Size | 85.3*82.2*60.9mm |
| Certification | RoHS, CE, ISO10993 |
| Application Field | Medical&Big Health, Industial Automation |
| Product Model | AB C8012-24V-1 |
| Product SPEC | AB C8012-24V-11.0kPa-807LPM |
| max.Speed | 43,300rpm |
| Motor Driver | AC06B |
| max.flow Speed | 82.63m/s |
| Motor Driver Layout | External |
| Lifetime(L10 at 40℃) | 20,000h |
| Rated Speed | 38,000rpm |
| Rate Voltage | 24VDC |
| Rated Airflow | 310LPM（18.6m³/h） |
| Voltage Range | 14-28V |
| Peak Power | 130W |
| Rated Power | 96W |
| Humidity Range | ≤85%RH |
| ID of Inlet | 22.7mm |
