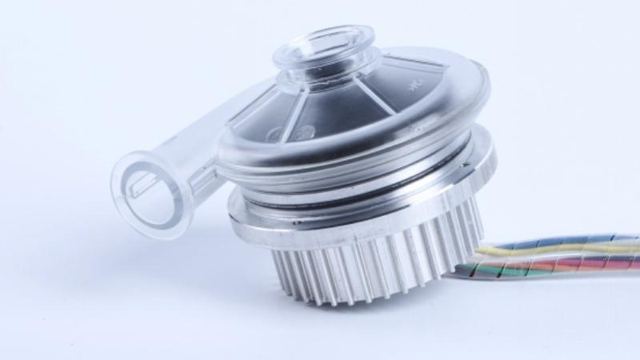

C8007 12V/24V/48V Brushless DC Blower
Model C8007-24V-1
Overview
C8007 12V/24V/48V Brushless DC Blower supplied by Gobalsir Inc. Key published specifications: Part Name Brushless DC Blower; Power Supply Type DC; Driver Layout External; max.Static Pressure 13.5kPa. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Part Name | Brushless DC Blower |
|---|---|
| Power Supply Type | DC |
| Driver Layout | External |
| max.Static Pressure | 13.5kPa |
| max.Flow Rate | 920LPM（55.2m³/h） |
| Rated Static Pressure | 10.0kPa |
| Rated Flow Rate | 405LPM（24.3m³/h） |
| Humidity Range(ambient) | ≤85%RH |
| Size | 85.3*82.2*60.9mm |
| Certification | RoHS, CE, ISO10993 |
| Application Field | Medical&Big Health, Industial Automation |
| Product Model | AB C8007-24V-1 |
| Product SPEC | AB C8007-24V-13.5kPa-920LPM |
| max.Speed | 49,500rpm |
| Motor Driver | AC01A, AC14C |
| max.flow Speed | 94.20m/s |
| Motor Driver Layout | External |
| Lifetime(L10 at 40℃) | 20,000h |
| Rated Speed | 42,500rpm |
| Rate Voltage | 24VDC |
| Rated Airflow | 405LPM（24.3m³/h） |
| Voltage Range | 14-28V |
| Peak Power | 170W |
| Rated Power | 130W |
| Humidity Range | ≤85%RH |
| ID of Inlet | 22.7mm |
