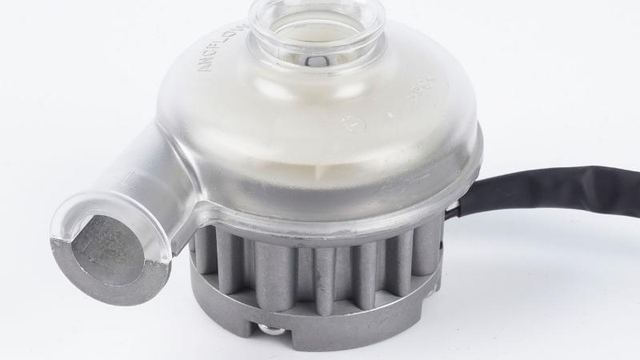

C6002 12V/24V/48V Brushless DC Blower
Model C6002-12/24/48V-1/3
Overview
C6002 12V/24V/48V Brushless DC Blower supplied by Gobalsir Inc. Key published specifications: Part Name Brushless DC Blower; Power Supply Type DC; Driver Layout External; max.Static Pressure 7.0kPa. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Part Name | Brushless DC Blower |
|---|---|
| Power Supply Type | DC |
| Driver Layout | External |
| max.Static Pressure | 7.0kPa |
| max.Flow Rate | 450LPM（27.0m³/h） |
| Rated Static Pressure | 5.5 kPa |
| Rated Flow Rate | 200LPM（12.1m³/h） |
| Humidity Range(ambient) | ≤85%RH |
| Size | 60.5*76.0*55.0mm/60.5*76.0*48.0mm |
| Certification | RoHS, CE |
| Application Field | Medical&Big Health, Industial Automation |
| Product Model | AB C6002-24V-1 |
| Product SPEC | AB C6002-24V-7.0kPa-450LPM |
| max.Speed | 46,200 rpm |
| Motor Driver | AC06B |
| max.flow Speed | 52.42m/s |
| Motor Driver Layout | External |
| Lifetime(L10 at 40℃) | 20,000h |
| Rated Speed | 39,600rpm |
| Rate Voltage | 24 VDC |
| Rated Airflow | 200LPM（12.1m³/h） |
| Voltage Range | 14-28V |
| Peak Power | 65W |
| Rated Power | 50W |
| Humidity Range | ≤85%RH |
| ID of Inlet | 20.3mm |
