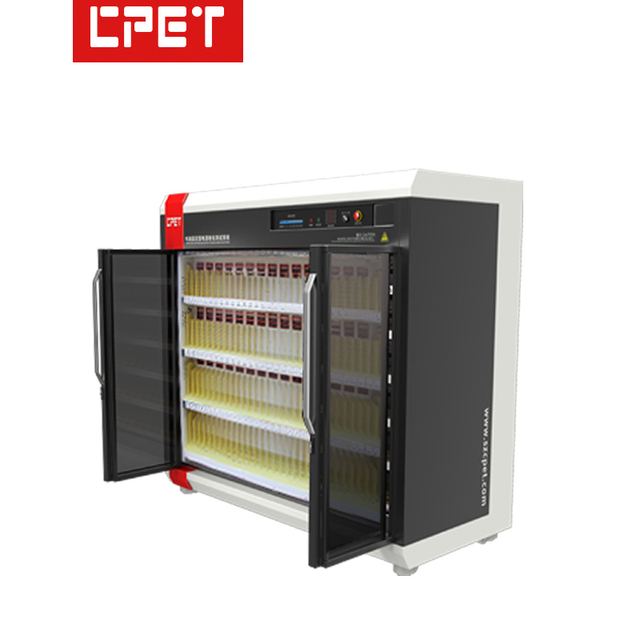

BMS Controller Burn-in Test Equipment with Energy Recovery
Model CP-MB2003
Overview
BMS Controller Burn-in Test Equipment with Energy Recovery supplied by Shenzhen CPET Electronics Co., Ltd. Key published specifications: Material Cold-rolled Sheet; Trolley Size (mm) L2050*W1250*H2050mm; Guarantee Period 1 Year; Trolley Height 175mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Material | Cold-rolled Sheet |
|---|---|
| Trolley Size (mm) | L2050*W1250*H2050mm |
| Guarantee Period | 1 Year |
| Trolley Height | 175mm |
| Trolley Size | L2050 * W1250 * H2050mm (single burn-in cabinet) |
| Trolley Structure Material | Thick cold rolled sheet |
| Energy Recovery Module Control | RS485 communication mode, upper computer RS232 communication |
| Skill Module Model | CP8601, 8PCS in single cabinet |
| DC Power Supply Capability | 10-100Vdc/1-30A/3kW (adjustable voltage and current) |
| Energy Recovery Load Capacity | 2.5-60Vdc/0.5-240A/3.2kW (adjustable voltage and current) |
| DC Source Modules | 24 DC power modules per burn-in cabinet |
| Total Burn-in Capacity | 48 BMS controllers less than 3.2KW per cabinet |
| Trolley Power Distribution | Single burn-in cabinet: 3000W*8/0.85≈23KW (85% measured power efficiency) |
| Certification | CE,ROHS |
