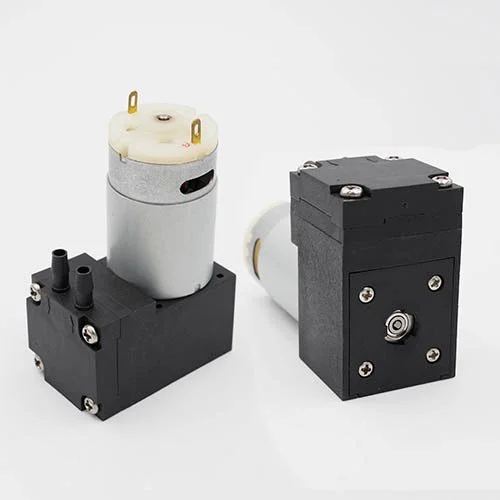

BD-03A/BD-03V Miniature Air Vacuum Pumps
Overview
BD-03A/BD-03V Miniature Air Vacuum Pumps supplied by Shenzhen Boden Technology Development Co., Ltd. Key published specifications: Voltage 6/9/12/24V DC; Air Flow 3L/min up to 7L/min; Liquid Flow 400-700ml/min; Pressure 2bar up to 3bar. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Voltage | 6/9/12/24V DC |
|---|---|
| Air Flow | 3L/min up to 7L/min |
| Liquid Flow | 400-700ml/min |
| Pressure | 2bar up to 3bar |
| Vacuum | -45kpa up to -75kpa |
| Motor | DC brush/DC brushless |
| Diaphragm | EPDM/PTFE/FKM |
| Model | BD-03A typical parameter: |
| Rated Voltage | 6V,12V, 24V |
| Model 1 | BD-03A-3L |
| Power | 5W |
| Max pressure | ≥200kPa(2bar/0.2Mpa/29psi) |
| Air flow(@0bar) | ≥3L/min |
| Model 2 | BD-03A-5L |
| Model 3 | BD-03A-6L |
| Rated Votage | DC6V/12V/24V |
| Negative pressure(Vacuum) | -60kpa(450mmHg), -70kpa(525mmHg), -70kpa(525mmHg) |
| Negative pressure | ≥-60kPa(450mmHg) |
| Inlet&outlet dimensions | ID3mm. OD:4mm |
| Dimension | 76 x 49 x 30 mm |
| Weight | 140g |
| Material | POM |
| Motor Type | DC Brush Motor |
| Noise | 55-65dB |
| Working type | Continuous or Intermittent |
