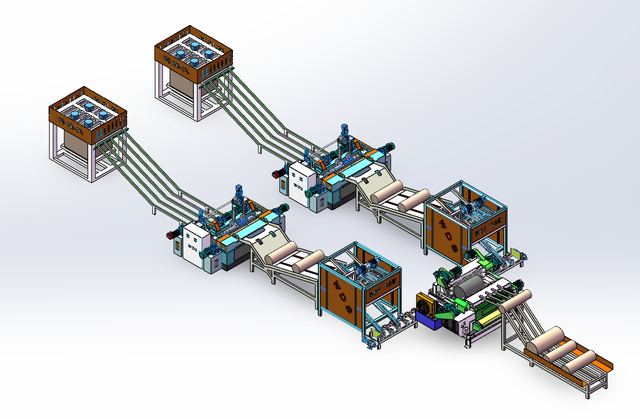

Automatic Plywood Veneer Peeling Production Line
Overview
Automatic Plywood Veneer Peeling Production Line supplied by Linyi Guoyu Machinery Co.,Ltd. Key published specifications: Maximum Loading Diameter 600 mm; Loading Speed 30 meters per minute; Total Motor Power 1.5 kW; Overall Dimensions 3500 × 1000 × 900 mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Maximum Loading Diameter | 600 mm |
|---|---|
| Loading Speed | 30 meters per minute |
| Total Motor Power | 1.5 kW |
| Overall Dimensions | 3500 × 1000 × 900 mm |
| Total Weight | 700 kg |
| Length of Log | 970–1270 mm |
| Diameter of Log | 600 mm |
| Debark Peeling Thickness | 2.0–6.0 mm |
| Debark Peeling Speed | 50 meters per minute |
| Maximum diameter of log | 500 mm |
| Length of blade | 1500 × 180 × 16 mm (Iron blade) |
| Thickness of peeling veneer | 0.8–4.0 mm |
| Peeling speed | 30–90 m/min |
| Diameter of screw | 94 mm |
| Diameter and length of single roller | 118 mm / 1500 mm |
| Power of double rollers | 7.5 kW × 2 |
| Feeding power | 11 kW (servo motor) |
| Clipper power | 2.2 kW (servo motor) |
| Overall size | 4500 × 2000 × 1450 mm |
| Veneer thickness of stacking | 1.0–3.6 mm |
| Speed | 80 m/min |
| Overall dimension | 2800 × 2200 × 2600 mm |
