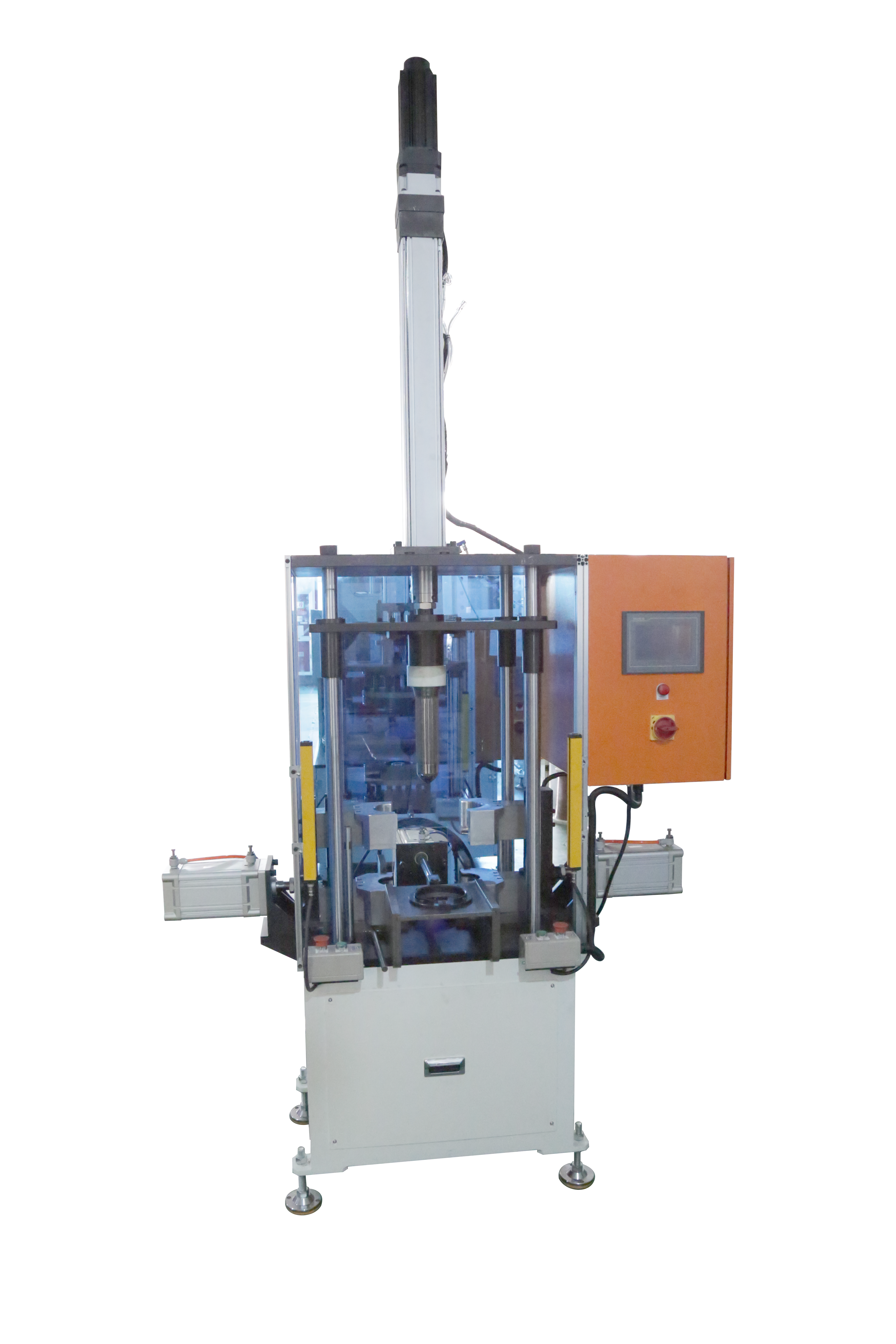

Automatic Motor Stator Coil Forming Machine
Model ZJ160H
Overview
Automatic Motor Stator Coil Forming Machine supplied by SMT Intelligent Device Manufacturing (Zhejiang) Co., Ltd. Key published specifications: Stack height ≤190mm; Stator I.D. 80-120mm; Stator O.D. 60-120mm; Displacement of cylinder 20F. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Stack height | ≤190mm |
|---|---|
| Stator I.D. | 80-120mm |
| Stator O.D. | 60-120mm |
| Displacement of cylinder | 20F |
| Input | 380V/50/60Hz |
| Power supply | 1.5kw |
| Machine weight | About 1000kg |
| Machine dimensions (L×W×H) | 1610 × 1100 × 2310mm |
| Spindle Motor | Three-phase Motor+Phase Motor+AC Driver |
| Certification | ISO / SGS Audit |
| Production capacity | ≤13s/set (excluding loading/unloading) |
