Overview

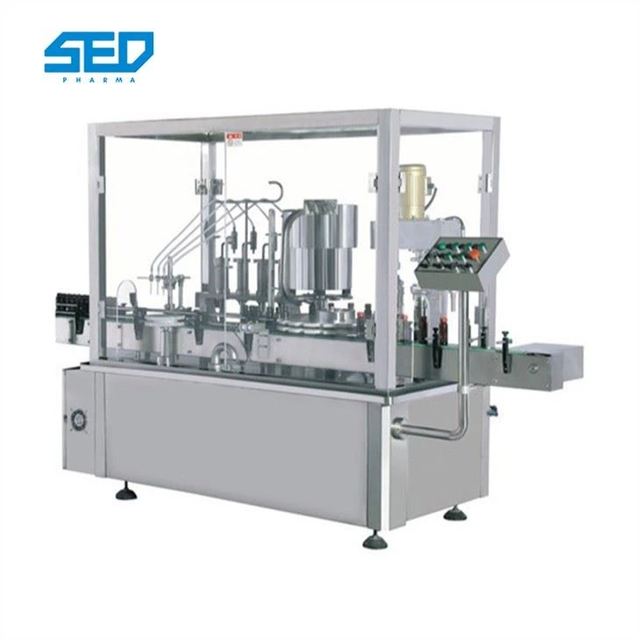

Automatic Liquid Filling And Capping Machine supplied by Hangzhou Shengde Machinery Co., Ltd. Listed under Filling Machine. Key published specifications: Kind of bottle Various kinds of plastic/glass bottle; Bottle size* Min. Ø 20mm Max. Ø80mm; Cap size* Ø 20~ Ø45mm; Filing nozzles 4heads. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Kind of bottle	Various kinds of plastic/glass bottle
Bottle size*	Min. Ø 20mm Max. Ø80mm
Cap size*	Ø 20~ Ø45mm
Filing nozzles	4heads
Speed	30~50bpm
Alternative Filling volume*	15~60ml, 30~125ml, 50~250ml, 200~500ml
Power*	220V 50/60Hz 1.2kw
Compress air require	10L/min, 4~6bar
Machine size mm	Length 2500, width 1000, height 1600
Machine weight	800kgs
