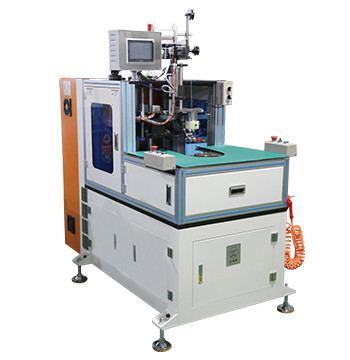

Automatic Coil Lacing Machine Double Sided For AC Industrial Motor
Model SMT-BZ51
Overview
Automatic Coil Lacing Machine Double Sided For AC Industrial Motor supplied by SMT Intelligent Device Manufacturing (Zhejiang) Co., Ltd. Key published specifications: Stack height 17~100mm; Stator O.D ≤Φ160mm; Height of overhang ≤40mm; Lacing mode Slot by slot/Interval slot/Fancy slot. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Stack height | 17~100mm |
|---|---|
| Stator O.D | ≤Φ160mm |
| Height of overhang | ≤40mm |
| Lacing mode | Slot by slot/Interval slot/Fancy slot |
| Lacing speed | ≈0.6s/s |
| Power supply | 380V/50/60Hz 3.5Kw |
| Weight | ≈800Kg |
| Dimension | (L)1500×(W)650×(H)1700mm |
| Air Pressure | 0.4MPa |
| Certification | ISO / SGS Audit, CE |
