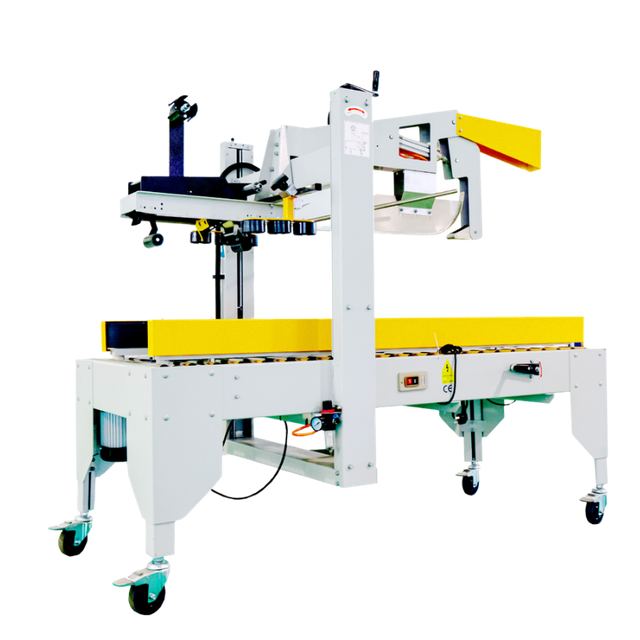

Automatic Carton Sealing Machine
Model ZYFC-05
Overview
Automatic Carton Sealing Machine supplied by WSL. Listed under Cartoning Machinery. Key published specifications: Carton Range (L) 200-600 (W) 150-500(H) 120-500mm; Operating Table Height Minimum 580mm, Maximum 675mm; Speed 1000-1200 boxes/hour(Carton/h); Dimension (L) 1672 (W) 830 (H) 1180mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Carton Range | (L) 200-600 (W) 150-500(H) 120-500mm |
|---|---|
| Operating Table Height | Minimum 580mm, Maximum 675mm |
| Speed | 1000-1200 boxes/hour(Carton/h) |
| Dimension | (L) 1672 (W) 830 (H) 1180mm |
| Power Supply | 110/220V, 50/60Hz |
| Gas Supply | 5-6kg/cm2 |
| Using Adhesive Tape | 48mm, 60mm, 75mm to choose one to use |
| Machine Weight | 180kgs |
