Overview

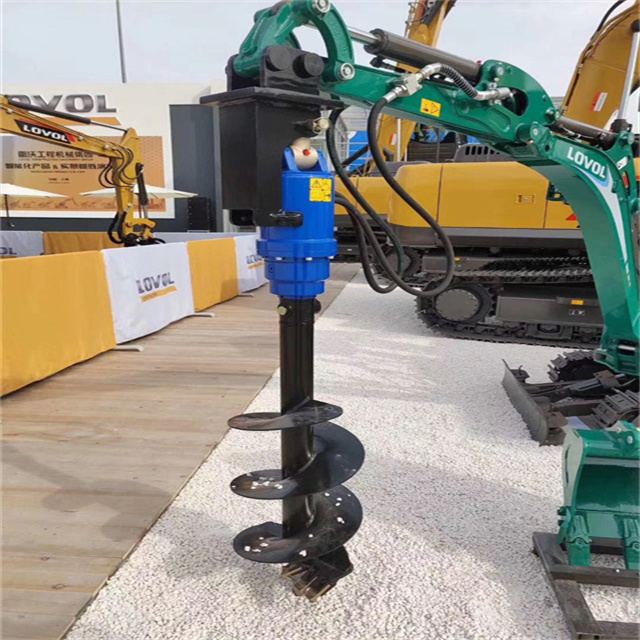

Auger Drill AP3000 Hydraulic Earth Drill Suitable for Foundation Drilling and Soil Sampling supplied by APIE FOUNDATION EQUIPMENT （CHINA）LIMITED. Listed under Drilling Rigs. Key published specifications: Suitable Excavator 2-4T; Output Shaft 65Rnd; Max Auger Diameter (Clay/Shale) 300 mm; Max Auger Diameter (Earth) 400 mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Suitable Excavator	2-4T
Output Shaft	65Rnd
Max Auger Diameter (Clay/Shale)	300 mm
Max Auger Diameter (Earth)	400 mm
Torque	1094-3195 Nm
Pressure	80-240 bar
Flow	25-70 L/min
Rotate Speed	30-82 rpm
Weight	100 kg
Certification	ISO and CE certificate
Pressure Range	80-240 bar
Maximum Auger Diameter for Clay/Shale	300 mm
Suitable Excavator Size	2-4 Tons
