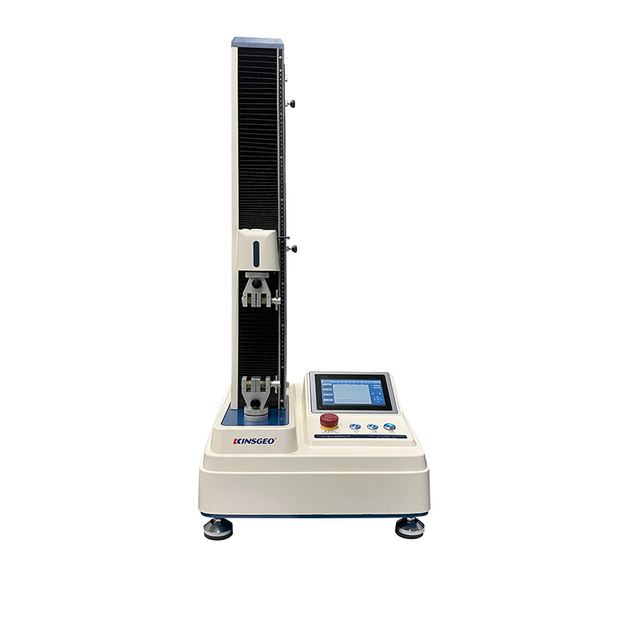

ASTM D3330 Tape Peel Strength Testing Instrument
Model KJ-1065A-N
Overview
ASTM D3330 Tape Peel Strength Testing Instrument, listed under Testing Instruments by GUANGDONG KEJIAN INSTRUMENT CO.,LTD in Guangdong. Certification CE/ISO, power AC220V 50Hz and weight 35kg are among the specifications published.
Technical specifications
| Certification | CE/ISO |
|---|---|
| Power | AC220V 50Hz |
| Weight | 35kg |
| Application | Peeling Tester |
| Standard | BS.EN.ASTM |
| Stroke | 650mm(excluding Clamp) |
| Tester Resolution | Constant The Resolution |
| Design Standards | ASTM D3330 FINAT GB/T2792 PSTC |
| Model | KJ-1065A-N |
| Capacity | 5kg (optional) |
| Speed Range | 0.5-500mm/min adjustable |
| Test Space | 120mm MAX |
| Dimensions (W×D×H) | 50×50×120cm |
| Optional Accessories | Stretcher, air clamp |
| Control range of temperature | RT+10℃~200℃ （Customizable） |
| Controller | Programmable LCD touch screen |
| Accuracy | class 1 (0.5 optional) |
| Measuring Range | 0-100N |
| Size (H*W*D) cm | 55*30*35cm |
