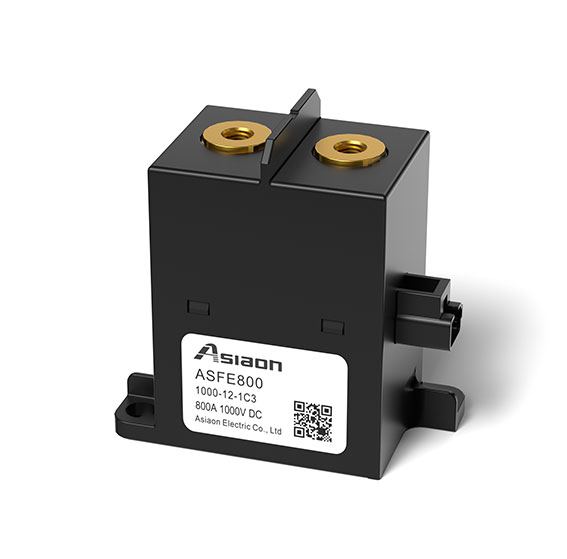

ASFE800
Overview
ASFE800 supplied by Asiaon Electric Co.,Ltd. Listed under Relays. Key published specifications: Load Voltage 1000V DC; Rated Current 800A; Min.Load Current 6V/1A; Operate Voltage 75%Below rated voltage. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Load Voltage | 1000V DC |
|---|---|
| Rated Current | 800A |
| Min.Load Current | 6V/1A |
| Operate Voltage | 75%Below rated voltage |
| Release Voltage | 10%Above rated voltage |
| Coil Rated Power W | start: 36W keep: 6W |
| Operate Time | ≤30ms |
| Release Time | ≤10ms |
| Coil Terminal Structure | Connector |
| Load Terminal Structure | Internal thread |
| Humidity | 5%~85%RH |
| Unit Weight | About 630g |
