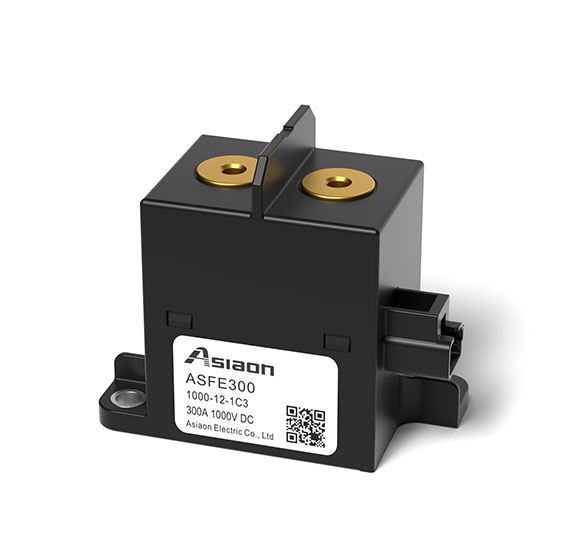

ASFE300
Overview
ASFE300 supplied by Asiaon Electric Co.,Ltd. Listed under Relays. Key published specifications: Load Voltage 1000V DC; Rated Current 300A; Min.Load Current 6V/1A; Operate Voltage 75%Below rated voltage. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Load Voltage | 1000V DC |
|---|---|
| Rated Current | 300A |
| Min.Load Current | 6V/1A |
| Operate Voltage | 75%Below rated voltage |
| Release Voltage | 10%Above rated voltage |
| Coil Rated Power W | 7W |
| Operate Time | ≤30ms |
| Release Time | ≤10ms |
| Coil Terminal Structure | Connector |
| Load Terminal Structure | Internal thread |
| Humidity | 5%~85%RH |
| Outline Dimensions | 86x74.5x42.5 |
| Unit Weight | About 435g |
| Connect M (Capacitive) | 500A 460V DC 1000uF 3000 TIME |
