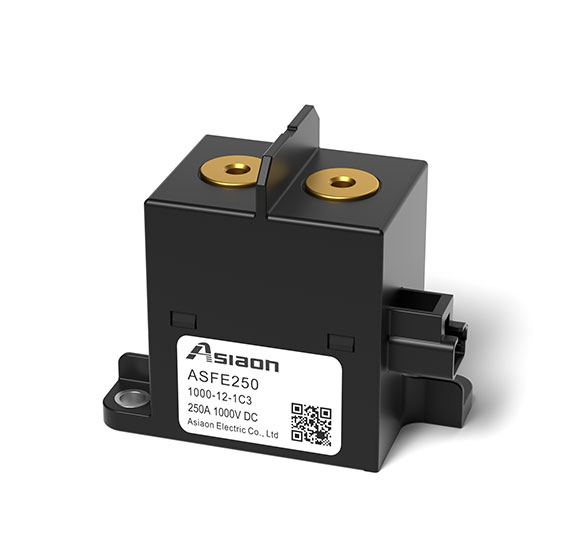

ASFE250

ASFE250

Overview

Asiaon Electric Co.,Ltd in Yueqing, Zhejiang lists ASFE250. The listing gives load voltage 1000V DC, rated current 250A and min.load current 6V/1A.

Technical specifications

Load Voltage1000V DC
Rated Current250A
Min.Load Current6V/1A
Operate Voltage75%Below rated voltage
Release Voltage10%Above rated voltage
Coil Rated Power W7W
Operate Time≤30ms
Release Time≤10ms
Coil Terminal StructureConnector
Load Terminal StructureInternal thread
Humidity5%~85%RH
Outline Dimensions86x74.5x42.5
Unit WeightAbout 435g
Connect M (Capacitive)500A 460V DC 1000uF 3000 TIME
