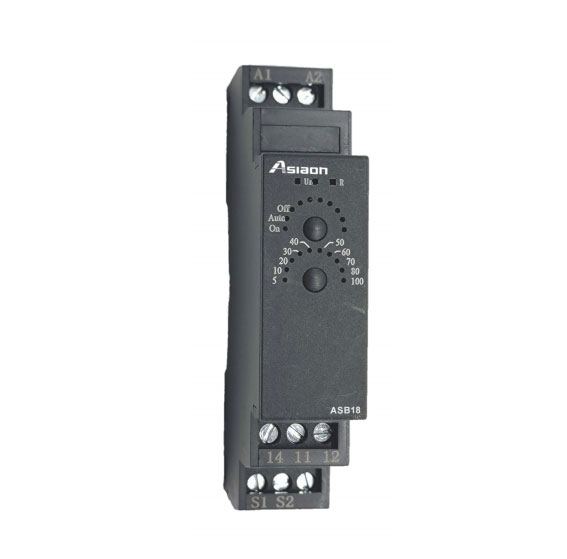

ASB18 Twilight Relay
Overview
ASB18 Twilight Relay supplied by Asiaon Electric Co.,Ltd. Listed under Relays. Key published specifications: Input Terminal A1-A2; Voltage range AC 230V/DC24V/AC/DC12-240V; Power consumption AC3.5VA/DC 2.0W; Supply indication Green LED. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Input Terminal | A1-A2 |
|---|---|
| Voltage range | AC 230V/DC24V/AC/DC12-240V |
| Power consumption | AC3.5VA/DC 2.0W |
| Supply indication | Green LED |
| Relay indication | Red LED |
| Setting | button |
| Temperature coefficient | 0.05%/℃, at=20℃ (0.05%/F, =68°F) |
| Output conctact | 1*SPDT |
| Rated current | 1*16A |
| Mounting | DIN rail EN/IEC60715 |
| IP Rating | IP20 |
| Stripping length | 7mm (0.28in) |
| Installed altitude | ≤2200m |
| Max cable size | AWG13-20 0.4N·m |
| Dimension | 90mm*18mm*64mm |
| Weight | about 90g |
| Standards | GB/T 14048.5, IEC60947-5-1, EN6812-1 |
