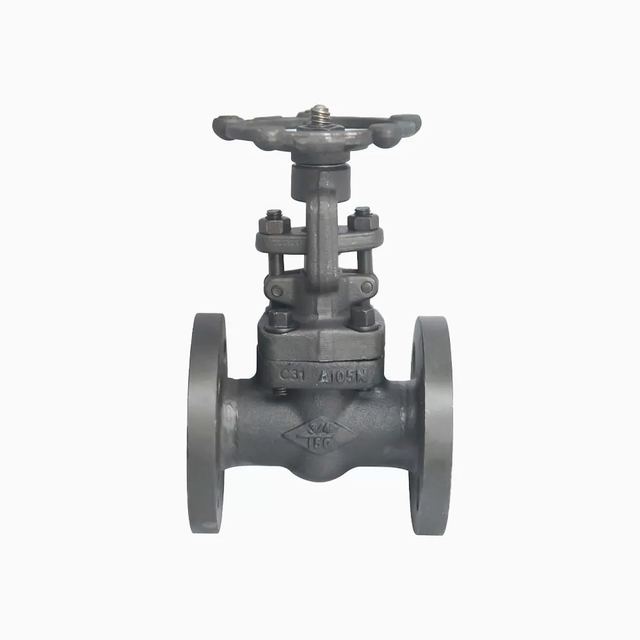

API6D DN20 DN50 150LB Flange ASTM A105 Forged Steel Gate Valve
Overview
API6D DN20 DN50 150LB Flange ASTM A105 Forged Steel Gate Valve supplied by TIANYU VALVE. Listed under Gate Valves. Key published specifications: Valve Size 1/4 “–2”, DN10–DN50; Pressure Class 150LB–2500LB, PN16–PN420; Design and Manufacturing Standards API602, ASME 16.34, BS 5352, BS 6364; Face to Face Standards API 602. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Valve Size | 1/4 “–2”, DN10–DN50 |
|---|---|
| Pressure Class | 150LB–2500LB, PN16–PN420 |
| Design and Manufacturing Standards | API602, ASME 16.34, BS 5352, BS 6364 |
| Face to Face Standards | API 602 |
| Pressure Test Standards | API 598 |
| Quality/Product Certifications | ISO9001, ISO14001, ISO18001 |
| Fugitive Emissions | ISO 15848-1, API 622 |
| Shutoff Class | API 598 (Zero Leakage), API 6D |
| Process Connection Types | SW, NPT, BW, RF, RTJ |
| Nominal Pressure | 150LB |
| Material | F316 |
| Design Standard | API600/API602/API6D |
| End Connection | RF FLANGE |
| Flange standard | ASME/ANSI B16.5 |
