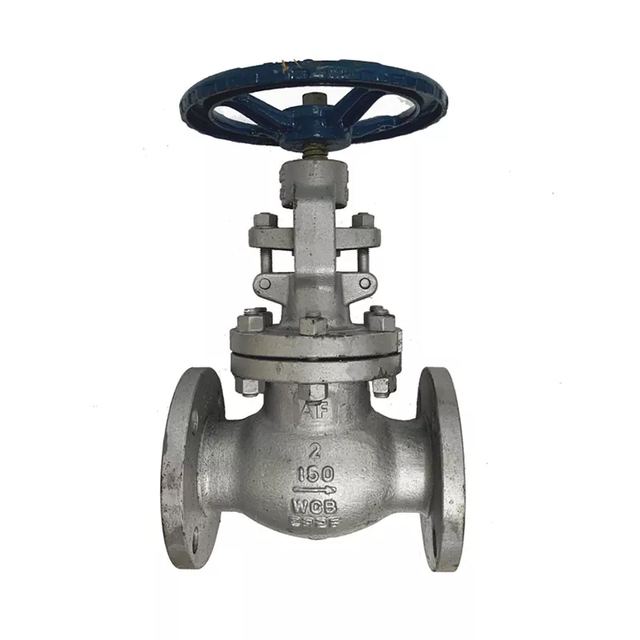

ANSI Globe Valve
Overview
ANSI Globe Valve supplied by Qingdao Wivo Valves Co., Ltd. Listed under Globe Valves. Key published specifications: Valve Type ANSI Globe Valve(T-Pattern,Y-Pattern,Angle Pattern); Size Range 1/2"-24"(DN15-DN600); Body Material Cast Iron,Carbon Steel,Stainless Steel; Seat Material Metal Seated or Soft Seated. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Valve Type | ANSI Globe Valve(T-Pattern,Y-Pattern,Angle Pattern) |
|---|---|
| Size Range | 1/2"-24"(DN15-DN600) |
| Body Material | Cast Iron,Carbon Steel,Stainless Steel |
| Seat Material | Metal Seated or Soft Seated |
| Pressure Rating | Class 150,Class 300,Class 600,Class 900 |
| Temperature Range | -29C to425℃ |
| End Connection | Flanged,Butt-weld,Socket-weld |
| Flange Standard | ANSI B16.5 |
| Operation | Manual,Electric,Pneumatic |
| Applications | Water,Steam,Oil,Gas,Chemical Industries |
