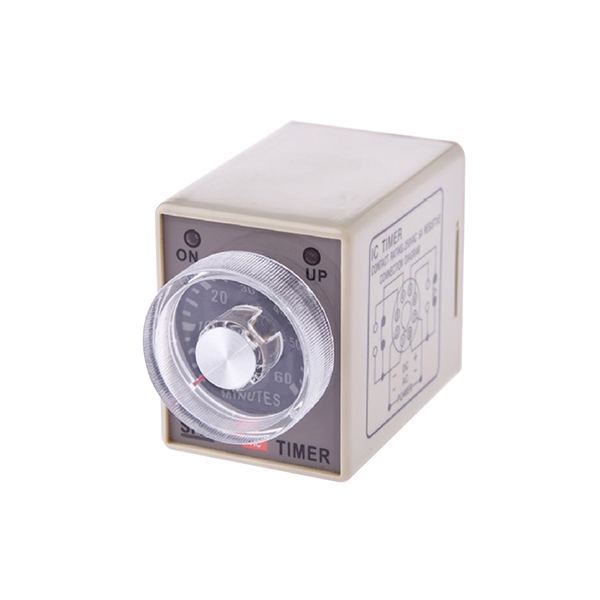

Analog Timer Relay
Overview
Analog Timer Relay supplied by ATO Relays. Listed under Relays. Key published specifications: Model ATO-TIMER-A; Mode of Operation on delay timer; Supply Voltage 220V AC, 12V DC, 24V DC; Timing Range 6s, 12s, 30min, 60min, 6h, 12h, 30h. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Model | ATO-TIMER-A |
|---|---|
| Mode of Operation | on delay timer |
| Supply Voltage | 220V AC, 12V DC, 24V DC |
| Timing Range | 6s, 12s, 30min, 60min, 6h, 12h, 30h |
| Setting Method | knob with pointer |
| Contact Capacity | 3A, 250V AC |
| Power Comsuption | ≤ 2W |
| Mounting Type | panel mount |
| Dimensions | 58*88*68 mm, 40*50*58 mm, 48*48*73 mm |
| Accessary | 8-pin mounting socket |
| Weight | 500g |
| Certification | CE, CCC, TUV, UL |
