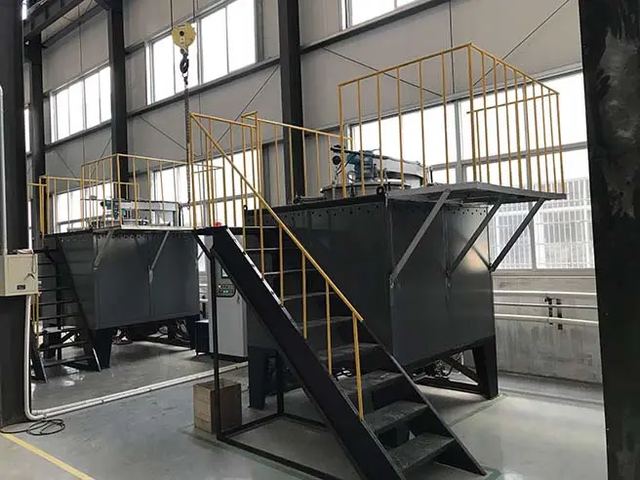

Amorphous Magnetic Annealing Furnace
Overview
Amorphous Magnetic Annealing Furnace supplied by Henan Baika Machinery Equipment Co., Ltd. Listed under Furnaces Heat Treatment. Key published specifications: Working dimension φ580*950mm (customized); Overall dimension 1900x2200x2500mm (reference); Capacity 120~140KG; Furnace total weight 5T. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Working dimension | φ580*950mm (customized) |
|---|---|
| Overall dimension | 1900x2200x2500mm (reference) |
| Capacity | 120~140KG |
| Furnace total weight | 5T |
| Rated voltage | 380V/50HZ (customized) |
| Transverse magnetic intensity | 0~1500GS (Using) |
| Heating temperature zone | Customized |
| Furnace cover locking | Electric hydraulic locking |
| Heating rate | 5℃/min |
| Cooling rate | 4℃/min |
| Cooling method | Water-cooling |
| Magnetic flux | 1500GS |
| Coil material | Aluminum flat strip |
| Insulation level | F |
| Vacuum pump | 2X-15 |
| Pressure Range | -100KPA~150KPA |
