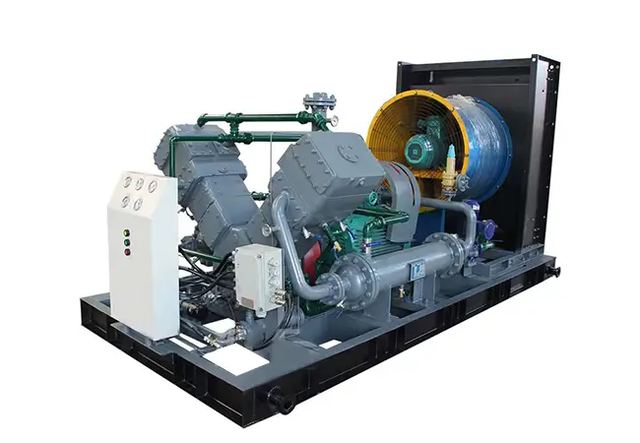

Ammonia Compressor

Ammonia Compressor

Overview

Ammonia Compressor, listed by Minnuo Compressor in Jingjiang, Jiangsu. Discharge volume 0.2m3/min-10m3/min, discharge pressure from 0.8Mpa-2.6Mpa and compressor model MN-6.4/250 are among the specifications published.

Technical specifications

Discharge volume0.2m3/min-10m3/min
Discharge pressurefrom 0.8Mpa-2.6Mpa
Compressor modelMN-6.4/250
Structure typeType DW
Nominal volume flow6.4m3/min
Suction pressureAtmospheric pressure
Exhaust pressure2.5Mpa
Cooling methodAir cooling
Equipped power132KW
Dimensions (L×W×H)5900*3100*2550mm
Compressor speed740（r/min）
Weight2500kg
Ideal for water-scarce areasNo water required.
