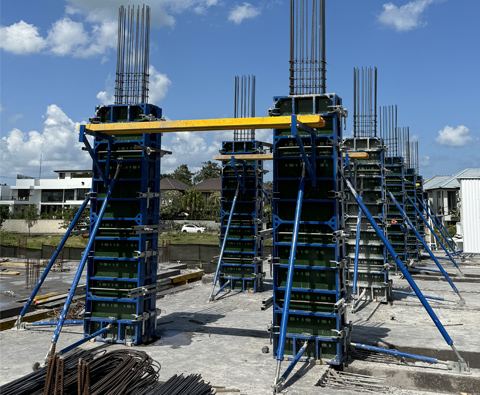

Aluminum Column Formwork

Aluminum Column Formwork

Overview

Aluminum Column Formwork supplied by YANCHENG LIANGGONG FORMWORK CO., LTD. Listed under Formwork. Key published specifications: Frame Material 6061-T6 Aluminum Alloy, powder coated; Form Lining 15mm thickness plywood; Panel Depth 117 mm; Panel Weight 23 kg/sqm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Frame Material6061-T6 Aluminum Alloy, powder coated
Form Lining15mm thickness plywood
Panel Depth117 mm
Panel Weight23 kg/sqm
Max Panel Size3*1 m
Allowable Concrete Pressure60 KN/sqm(without waler) 80 KN/sqm(with waler)
Ordinary Panel DimensionHeight: 3000/2400/1200/600mm Width: 1200/1000/750/500mm
Height3000/2400/1200/600mm
Width1200/1000/750/500mm
