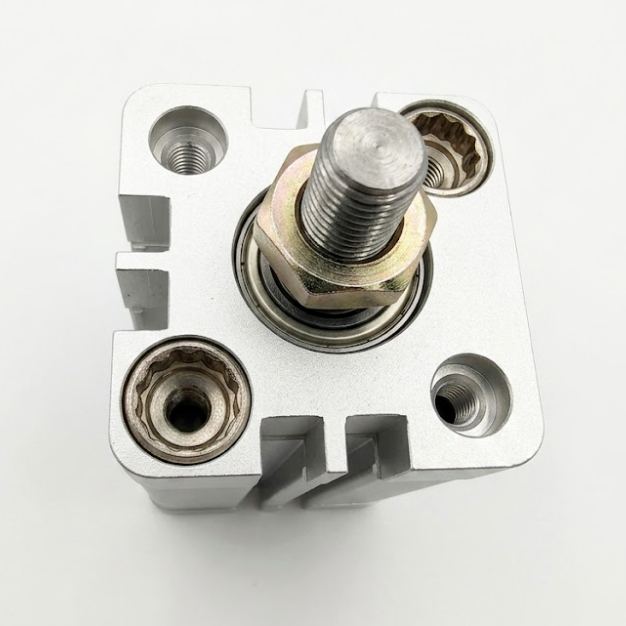

ACE Series Compact Pneumatic Cylinder
Model ACE
Overview
ACE Series Compact Pneumatic Cylinder supplied by Prius pneumatic Company. Listed under Pneumatic Cylinders. Key published specifications: Proof Pressure 1.5 MPa (215 Psi); Operating Temperature -20°C to 70°C; Speed Range (Double Acting) 30 to 500 mm/s; Speed Range (Single Acting) 50 to 500 mm/s. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Proof Pressure | 1.5 MPa (215 Psi) |
|---|---|
| Operating Temperature | -20°C to 70°C |
| Speed Range (Double Acting) | 30 to 500 mm/s |
| Speed Range (Single Acting) | 50 to 500 mm/s |
| Piping Port Size (Bore 12–25) | M5×0.8 |
| Piping Port Size (Bore 32–100) | G1/8" |
| Piping Port Size (Bore 125) | G1/4" |
| Standard | ISO 21287 Compliant |
| Bore Sizes Available | 12mm To 125mm |
| Working Medium | Compressed Air (Filtered By 40μm Filter Element) |
| Cushioning Type | Bumper Bumper (Elastic Cushioning) |
| Certification | ISO 9001:2015, CE |
