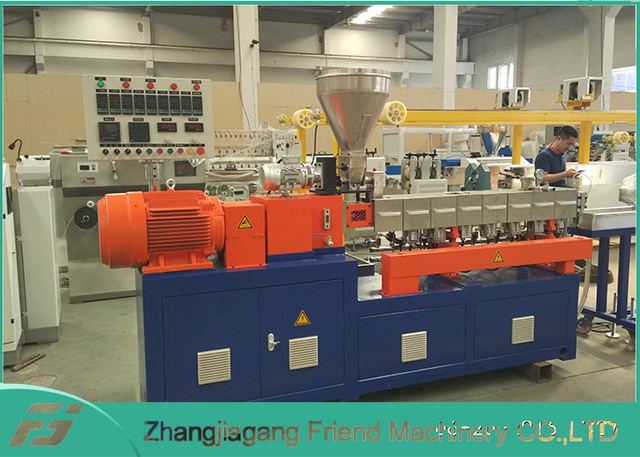

ABS Plastic Sheet Extrusion Making Machine Roof Ceiling
Overview
ABS Plastic Sheet Extrusion Making Machine Roof Ceiling supplied by Zhangjiagang Friend Machinery Co.,lTD. Listed under Extruders. Key published specifications: S crew Diameter 45 mm; Screw Material 38CrMoAlA; Hardness of Screw HV900-1000; Main Motor Power 7.5KW. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| S crew Diameter | 45 mm |
|---|---|
| Screw Material | 38CrMoAlA |
| Hardness of Screw | HV900-1000 |
| Main Motor Power | 7.5KW |
| Heating Method | Casting Aluminum Heater+ 304 stainless steel |
| Heating Power | 2KW*4 |
| Cooling Method | Forced Air Cooling |
| Fan power | 0.065kw*4 |
| Screw Maximum Rotating Speed | 89 rpm |
| Maximum Capacity | 25kg/h |
| Screw and Barrel | Jinjiu Screw |
| Certification | CE,SGS,UV |
| Application | Plastic Extrusion |
| Extruder Type | Single Screw |
| Screw And Barrel Material | 38CrMoAIA |
| Motor | SIEMENS Brand |
